Badestnost 05 Z80 A ES3 24VDC Direct Solenoid Control Valve 80l/Min Hydrocap Valves
Badestnost 05 Z80 A ES3 24VDC Direct Solenoid Control Valve 80l/Min Hydrocap Valves
Hydraulic Monoblock Solenoid Control Valve 5 Banks, 21 GPM, 24V DC
Monoblock direct acting solenoid control valve that offer perfect choice whether you are designing a new system or just trying to get more out of your existing system. With 5 sections in a mono block housings, this valve can meet the specific needs of your application and hydraulic systems.
Monoblock direct acting solenoid control valves offer perfect choice whether you are designing a new system or just trying to get more out of your existing system. With up to 6 sections in a mono block housings, these valves can meet the specific needs of your application and hydraulic systems. Fitted with a double acting spool as standard.
Specification
| PORT SIZE A/B = 3/8" BSP |
| CAST IRON BODY - EN-GJL300 |
| MAX WORKING PRESSURE - P = 250 BAR, T = 50 BAR, A/B = 300 BAR |
| MAX FLOW RATE = 80 LPM |
| OPERATING TEMPERATURE BETWEEN -40℃ TO +60℃ |
| RELIEF VALVE SETTING = 180 BAR STANDARD (MAX = 250 BAR) |
| SPOOL LEAKAGE AT 100 BAR = 18CM3 P/M |

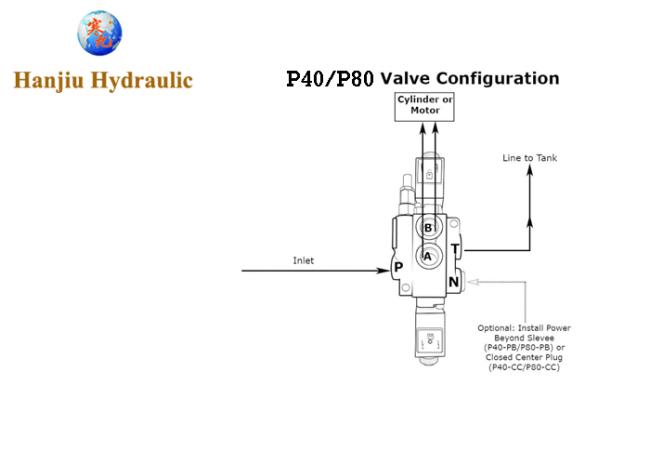

Common Uses:
- Operate hydraulic cylinders (Double-Acting or Single-Acting): Grapples (Tilt/Raise Cylinders), Box Blade (Height Adjustment)
- Install rear remotes on a tractor
- Operate Winches (“A” Spool)
- Raise/Lower Dump Truck Bed (“A” Spool)
- Operate Cylinders for Snow Plows (“A” Spools)
A Spool (Controls Double Acting Cylinders)
- All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
- A and B ports are closed to Tank in neutral position
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 7 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | 100% |
Port threads
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
