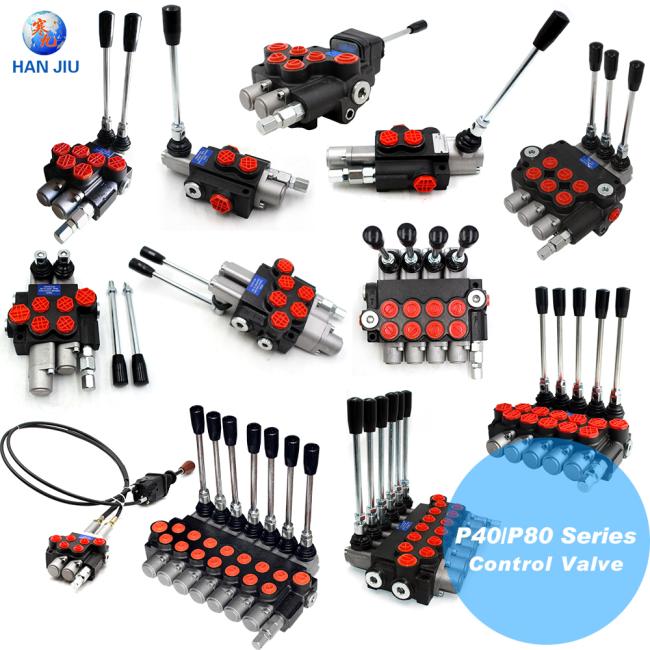

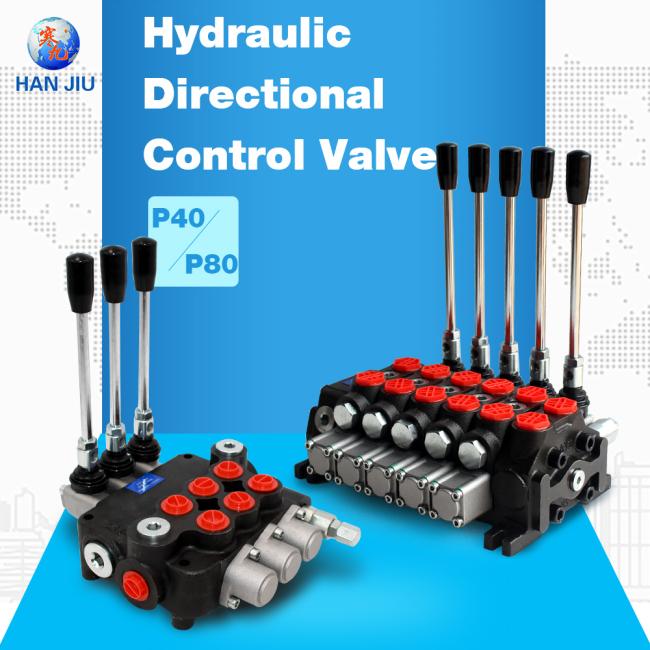

45lpm And 80lpm Monoblock Directional Control Valve For Mobile And Stationary Equipment
Directional Monoblock Valves, 45 LPM and 80 LPM, for Mobile and stationary equipment to drive motors and cylinders
Directional Monoblock Valves
TECHNICAL CHARACTERISTICS
Monoblock manually operated valves.
P40 Flow: 45 LPM - P80 Flow: 80 LPM.
APPLICATIONS
Mobile and stationary equipment to drive motors and oil-hydraulic cylinders.
TECHNICAL CHARACTERISTICS
Mono block from 1 to 5 levers
Parallel circuit, with backstop at P
Nominal flow from 45 l / min to 400 l / min.
Working pressure 315 bar or 4600PSI
Built-in adjustable pressure relief valve for protection.
Connections: 3/8 ”GAS A, B; P 1/2” GAS T
| Descripcion | ||
| Model | Flow | Spool |
| P-40 | 45 l/min | 1 |
| P-40 | 45 l/min | 2 |
| P-40 | 45 l/min | 3 |
| P-40 | 45 l/min | 4 |
| P-40 | 45 l/min | 5 |
| P-80 | 80 l/min | 1 |
| P-80 | 80 l/min | 2 |
| P-80 | 80 l/min | 3 |
| P-80 | 80 l/min | 4 |
| SD-14 | 120 l/min | 1 |
| SD-18 | 160 l/min | 1 |
| SD-18 | 160 l/min | 2 |
| SD-18 | 160 l/min | 3 |
Sectional also available
