Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Price:
Negotiable
MOQ:
20 Sets
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description

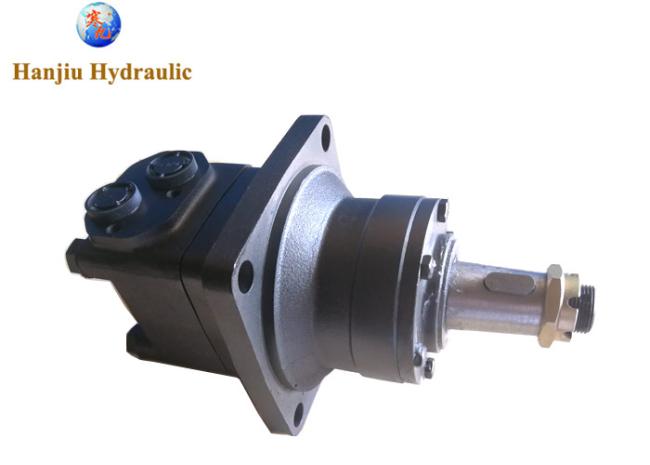

BMTW / OMTW 4 Bolts Hydraulic Wheel Drive Motors type #151B3034 11116527
- Output volume (cc/rev): 410,9
- Shaft: Konuswelle 45 mm
- max r.p.m.: 305
- Torque max. (Nm): 1080
- Power max. (kW): 30,0
- Pressure difference (bar): 180
- Inlet pressure (bar): 210
- Volume flow max. (l/min): 125
- Engine version: with non-return valves
- Connection: G 3/4"
- Leakage oil connection: G 1/4"
Main Specifications:
| Type | BMTW 160 |
BMTW 200 |
BMTW 230 |
BMTW 250 |
BMTW 315 |
BMTW 400 |
BMTW 500 |
BMTW 630 |
BMTW 800 |
|
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
other types we supply same as Danfoss
151B3009 OMT 315
151B3010 OMT 400
151B3011 OMT 500
151B3012 OMT 160
151B3013 OMT 200
151B3014 OMT 250
151B3015 OMT 315
151B3016 OMT 400
151B3017 OMT 500
151B3018 OMT 160
151B3019 OMT 200
151B3020 OMT 250
151B3021 OMT 315
151B3022 OMT 400
151B3023 OMT 500
151B3024 OMTW 160
151B3025 OMTW 200
151B3026 OMTW 250
151B3027 OMTW 315
151B3028 OMTW 400
151B3029 OMTW 500
151B3030 OMTW 160
151B3031 OMTW 200
151B3032 OMTW 250
151B3033 OMTW 315
151B3034 OMTW 400
151B3035 OMTW 500
151B3036 OMTS 160
151B3037 OMTS 200
151B3038 OMTS 250
151B3039 OMTS 315
151B3040 OMTS 400
151B3041 OMTS 500
151B3042 OMT 160
151B3043 OMT 200
151B3044 OMT 250
151B3045 OMT 315
151B3056 OMT 250
151B3057 OMT 400
151B3062 OMT 500
