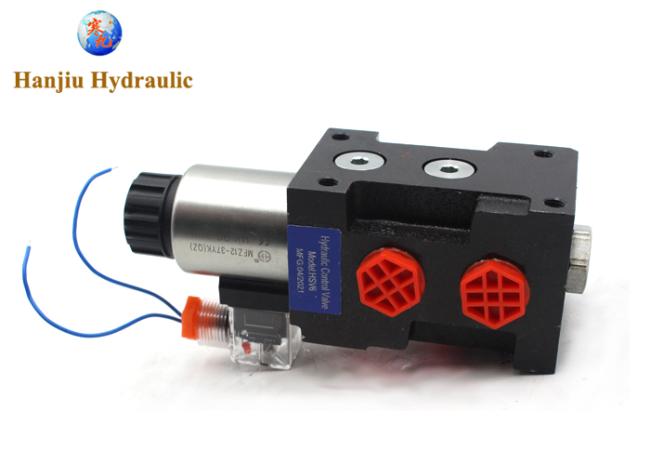

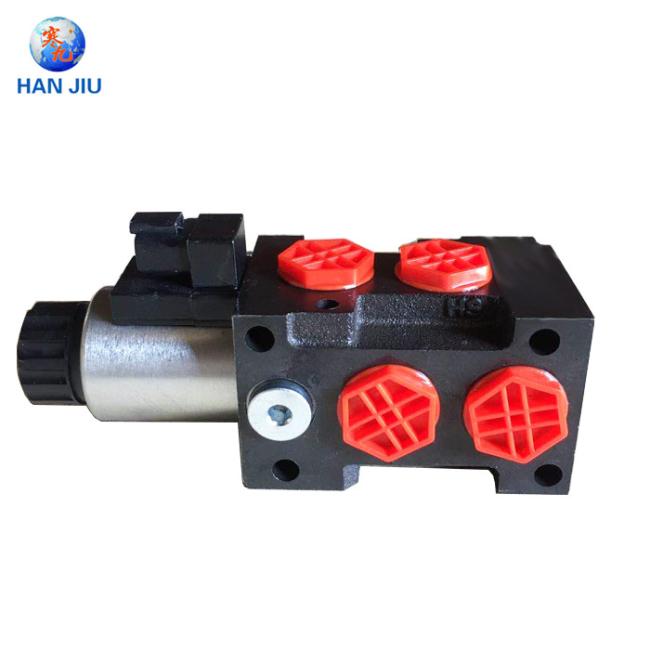

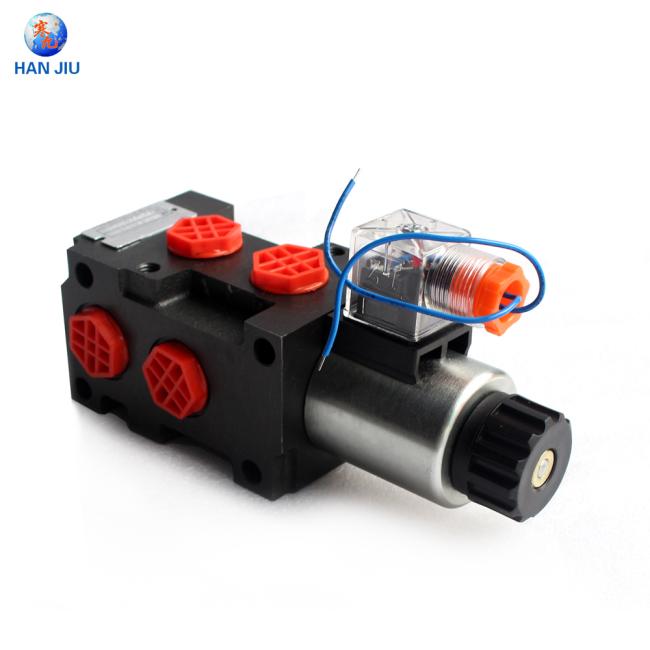

Dvs6 6/2 Solenoid Operated Hydraulic Directional Valve Hydraulic Diverter / Selector Valve
DVS6 6/2 Solenoid Operated Hydraulic Directional Valve Hydraulic Diverter/ Selector Valve
The Hydraulic Solenoid Operated Selector Valves come in both 12VDC and 24VDC. These valves come with a nominal flow of either 50LPM or 90LPM and have a maximum pressure of 315 bar.
l Stack up to 3 sections (A,B type)
l 12V/24V DC optional
l 3-pin or 2-pin water-proof plug optional
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | IP65 |
Ordering code
HSV6---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
4.Ports size
| Code | Port Thread size |
| P1 |
G1/2
|
| P2 |
G3/8
|
| P3 |
7/8-14UNF |
5.Solenoid type
Model type
type A
Type B
Type C
