Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007
Eaton char lynn AFTERMARKET HYDRAULIC MOTOR 105-1007-006 / 105-1007
Quick view:
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 02 | 2000 SERIES |
| DISPLACEMENT | 187 | 306.6 CM3/R [18.71 IN3/R] |
| MOUNTING TYPE | AB | WHEEL, 4 BOLT; 108.0 [4.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 147.6 [5.81] DIA. BOLT CIRCLE. 127.0 [5.00] DIA. REAR MOUNT PILOT |
| OUTPUT SHAFT | 03 | 31.75 [1.250] DIA. .125;1 TAPERED SHAFT PER SAE J501 WITH 1.000-20 UNEF-2A THREADED SHAFT END AND SLOTTED HEX NUT, 7.938 [.3125] SQ X 25.40 [1.000] STRAIGHT KEY |
| PORTS | AA | .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTION | 01 | .4375-20 UNF-2B SAE O-RING PORT |
This is a Aftermarket Low Speed High Torque Motor of Eaton Char lynn 105-1007-006 / 105-1007
Form, fit, and function the same, at a substantial savings.
All units are TESTED prior to shipment, and come complete with a 1 year warranty.
Item is not in stock, delivery time according to your needed quantity, but generally within 45 days.
Questions? Give us a call 24hrs a day or email.

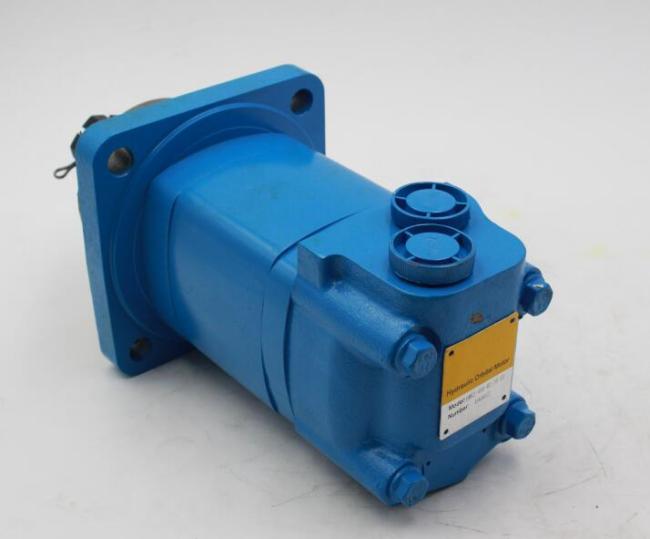

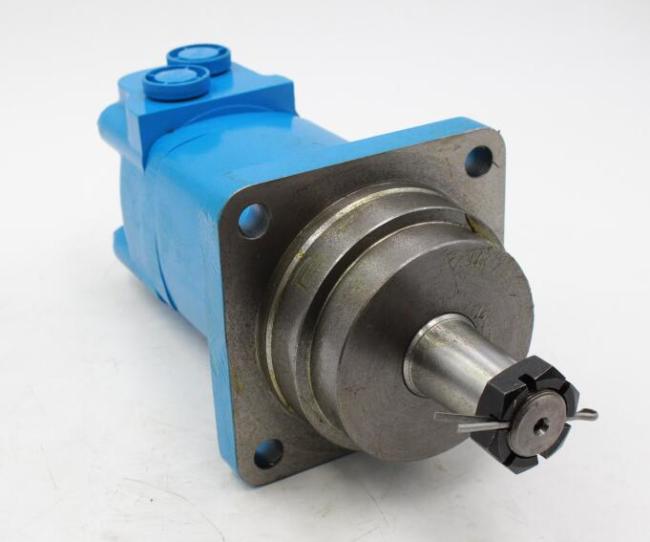

Below is reference photo of aftermarket Eaton Char lynn 105-1007-006 / 105-1007, and also more aftermarket notors of Eaton
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
