665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
Price:
350
MOQ:
100 Sets
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description

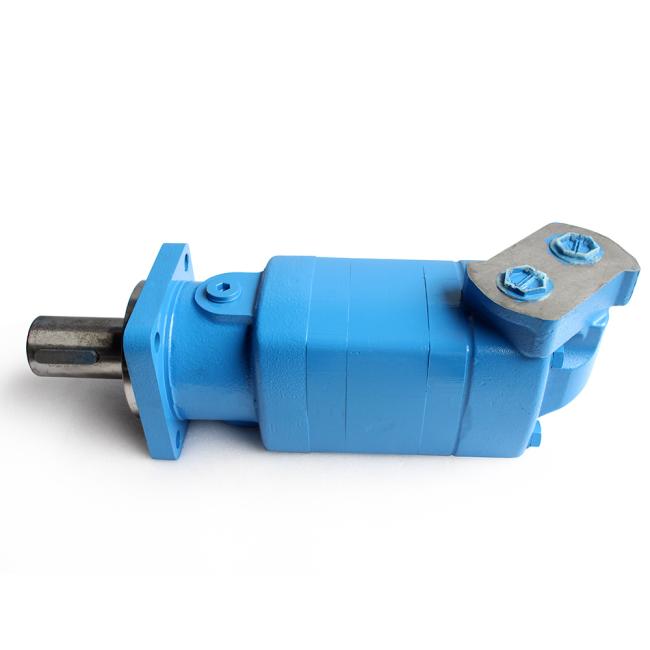

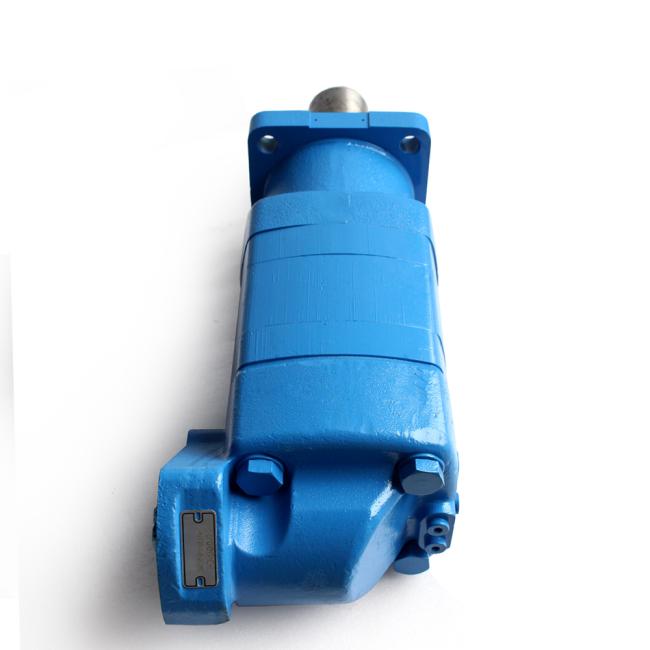

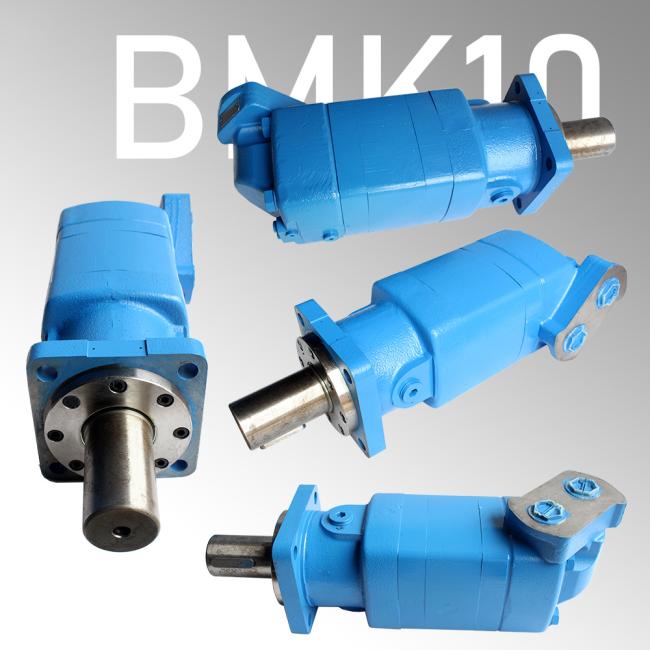

Hydraulic Geroler Disc Valve MotorChar-Lynn (Eaton) 119-1030-003 10000 - Standard, 665.3 cm³/r Geometric Displacement
OVERVIEW
Lowest pressure drop motor in the industry
* This is an Aftermarket CHAR-LYNN 119-1030-003 / EATON 119-1030 MOTOR
NOTE
Delivery time estimates are based on real-time product availability and standard ground shipping.
SPECIFICATIONS
| Series | 10000 - Standard |
| Displacement | 40.60 in³/r, 665.3 cm³/r |
| Mounting Type | 4-Bolt Flange - 5 in Pilot |
| Shaft Type | Straight |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | 2-1/4 in Straight - Straight Key |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size | .5625-18 Unf-2b O-ring Port Size -6 |
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
More AFTERMARKET CHAR-LYNN / EATON MOTOR
