Charlyn 6000 Series 112-1067-006 Orbit Hydraulic Motor Aftermarket
Orbit Hydraulic Motor CHARLYN 6000 Series 112-1067-006 Aftermarket
OVERVIEW
It has the same form, fit, mounting, size, installation, size and performance of the CHARLYNN motor.

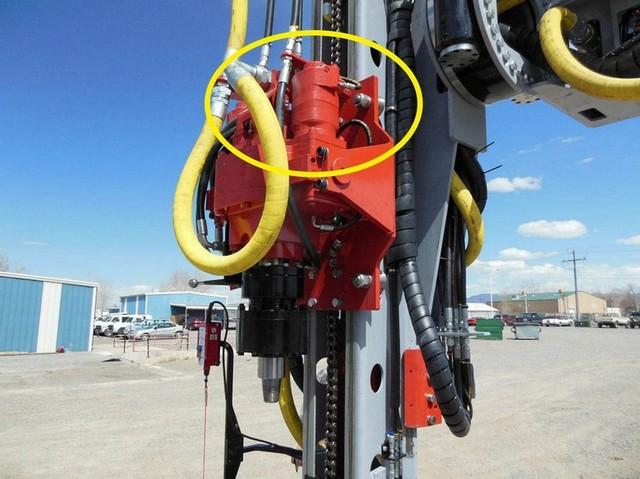

It's suitable for mining, marine, forestry, industrial applications, Winches, drills, roller presses, wheel motors.
It's cost is 50% lower than CHARLYNN 6000 Series.
Contact us for a quote.
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 06 | 6000 SERIES |
| DISPLACEMENT | 239 | 391.7 CM3/R [23.90 IN3/R] |
| MOUNTING TYPE | AB | STANDARD; (SAE CC); 4 BOLT; 127.0 [5.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 162.0 [6.38] DIA. BOLT CIRCLE |
| OUTPUT SHAFT | 01 | 38.10 [1.500] DIA. STRAIGHT SHAFT WITH .375-16 UNC-2B THREAD IN END; 9.52 [.375] SQ X 41.28 [1.625] STRAIGHT KEY |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | 02 | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE/FLOW OPTION | 00 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
We provide hydraulic drive engine for crushers, screens and other quarrying and mining machinery. We provide the most accurate and lasting solutions to our customers' needs and expectations. We make our friendship with the service that we offer by keeping customer satisfaction on top of everything.
