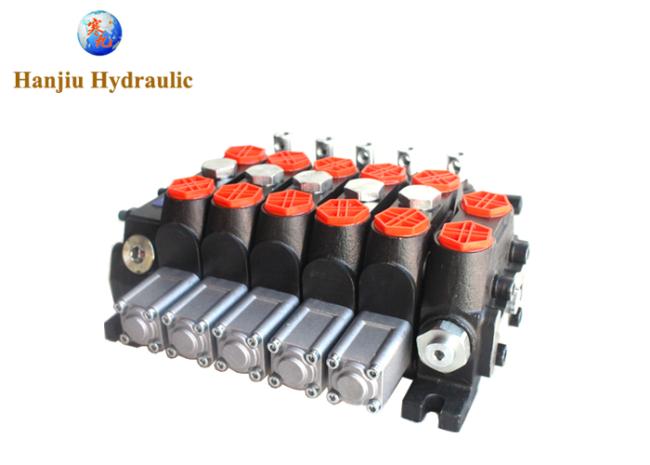

Sn5 100 Liters Sectional Control Valves With Pressure Relief Valve 220 Bar
SN5 Sectional Directional Control Valves 100 Liters,5 Sections With Pressure Relief Valve 200 Bar
-
Compact construction. Low pressure drop.
Long service life. High efficiency.
Choice of various operation methods, such as manual, pneumatic, hydraulic, and electro-hydraulic.
Choice of various ports and circuit valves.
Spring return.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.

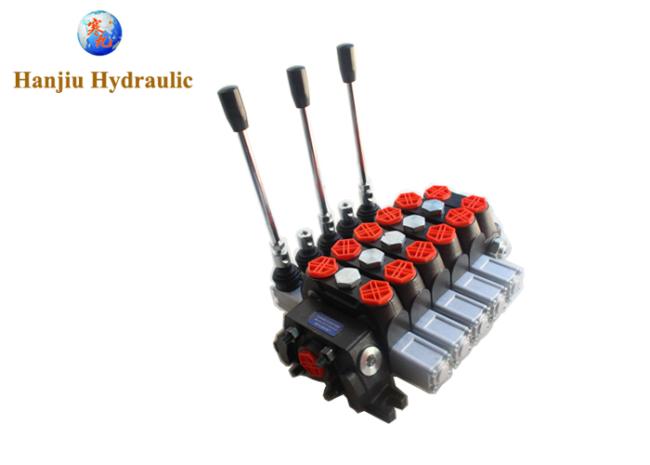

Handle shift operation.
|
Norminal Flow
|
100 L/min
|
|
Max Flow
|
27GPM |
|
Max Pressure
|
315 bar/4600PSI
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | sectional 1-12sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional

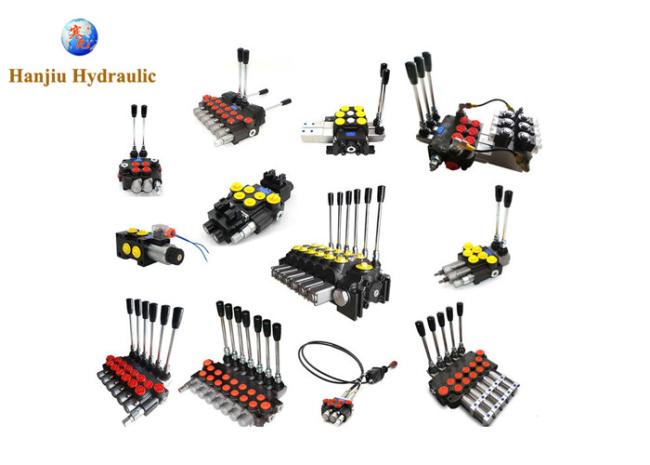

RELATED PRODUCTS:
