Grain Augers Drive Ws 350 Series Danfoss Motors Replacement For Agricultural Equipment
Grain Augers Drive Motor, DANFOSS Drive Motors WS 350 Series Replacement for Agricultural Equipment
This is a replacement hydraulic motor of DANFOSS 11210630 WS 350 series 350230A7120ALAACS 350230A7120ALAAC. It's apply to medium-duty wheel drives, sweepers, grain augers, spreaders, feed rollers, brush drives, mowers, harvesting equipment gear box mounts and more.
Quick Review:
| Model Number | 350230A7120ALAAC |
| Displacement cm3 [in3/rev] |
228 [13.92]
|
| Max. Speed rpm cont. inter. |
325 490
|
|
Max. Flow lpm [gpm] cont. inter.
|
76 [20] 114 [30]
|
|
Max. Torque Nm [lb-in] cont. inter.
|
642 [5685] 806 [7135]
|
| Rotation |
Clockwise Rotation
|

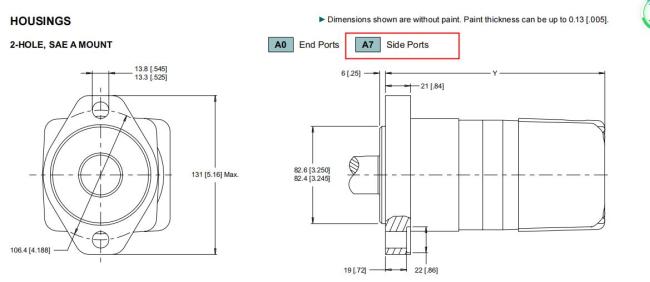

| Mounting |
2-Hole, SAE A Mount
|
| MISCELLANEOUS OPTION |
Freeturning Rotor
|
.
This hydraulic motor targets agricultural equipment, skid steer attachments, and other applications that require greater torque under demanding conditions. A distinguishing feature of this hydraulic motor in relation to competitive products is its heavy duty drive link with a larger pitch diameter. This enables the motors to better withstand pressure and torque spikes and is reflected in its intermittent and peak performance ratings. Additional product features include a three zone commutator valve, heavy-duty tapered roller bearings, and drain with integral internal drain*. The hydraulic motor offers numerous housing, displacement and shaft options to meet most common SAE and European requirements.
Contact us for more infos.
