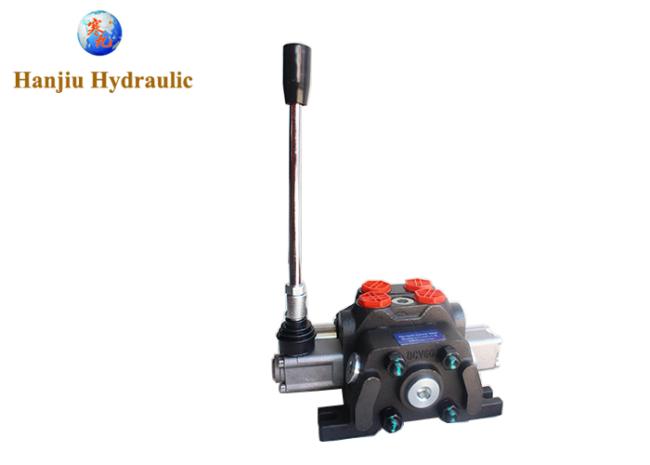

16 Gpm High Pressure Dcv60 Hydraulic Control Valves With 1 Bank Bsp Ports
Hydro direction valve 16GPM high pressure valve with 1 bank BSP ports
| Norminal Flow | 60 L/min |
| Max Flow | 16GPM |
| Max Pressure | 315 bar/5076PSI |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | G3/4 |
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |

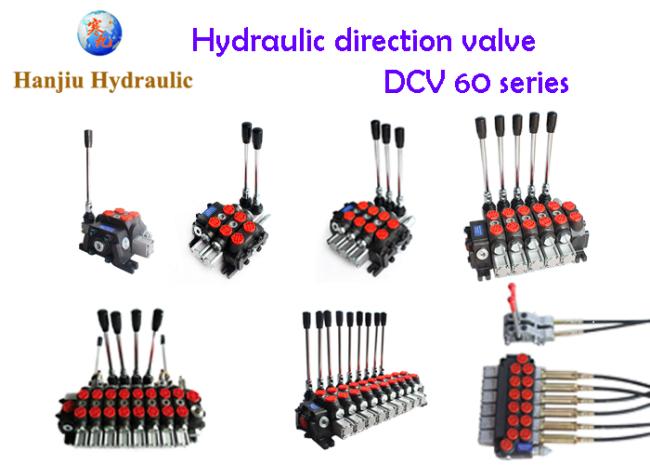

| Structure | sectional 1-12sections |
Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section
Available with parallel or series circuit.
Optional carry--over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro--hydraulic, and remote with flexible cables spool control kits.
Diameter 20 mm (0.79 in) interchangeable spools.
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
