2431203160 4000006190 Haulotte Motor For H16TPX / HB44J H16TPX / HB44J

Price Negotiable
Price: Negotiable
MOQ: 100 Pieces
Delivery Time: 20 - 25 work days
Brand: HANJIU
Product Description

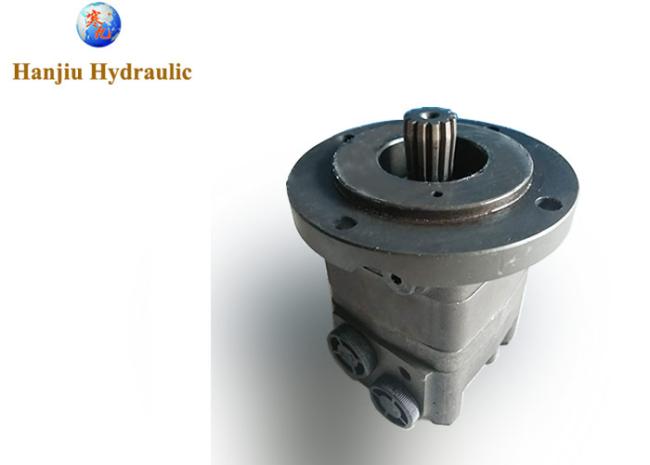

HAULOTTE 2431203160,4000006190 HYDRAULIC MOTOR for H16TPX / HB44J H16TPX / HB44J





FIT H16TPX / HB44J H16TPX / HB44J,



H18SX/H18SXL / HS5388RT/HS5388RTX,



LIFT H18SDX, H15SX/H15SXL / HS4388RT/HS4388RTXL,



H15SD/H15SDX, H12SX/H12SXL / HS3388RT/HS3388RTXL,



H12SDE, H12SD/H12SDX, HA20PX / HA61JRT, HA20P,



HA18SPX / HA51SJRT, HA16X, HA16SPX / HA46SJRT,



HA16RTJPRO / HA46RTJPRO, HA16RTJO / HA46RTJO,



HA16RTJ / HA46RTJ, HA16PX / HA46JRT, HA16DX,HA16D,



HA15X, HA15DX, HA12PX, HA12DX,HA16PE



Product details:



Length of the hydraulic motor: 148 mm
Length of the pump section: 30 mm
Type of flange: round
Neck diameter: 100 mm
Number of mounting holes: 4
Diameter of the mounting holes: 10,50 mm
Centre distance between farthest mounting holes: 125 mm
Type of shaft: splined
Distance collar + shaft: 24 mm
Shaft diameter: 27 mm
Number of splines: 12
Number of connections: 2
Thread type: 1/2 BSP
Pitch imperial: 14
Thread type: M10
Pitch metric: 1,50 mm








other types















The role of the hydraulic motor is very important. If you want to increase the operating speed of the hydraulic system, you first need to have a hydraulic motor that can run stably for a long time.



HANJIU TECHNOLOGY's hydraulic motor can be said to be the most cost-effective one on the market now. Whether you want an economical hydraulic motor or a hydraulic motor that can run at high speed in extreme environments, you can find what you are at HANJIU TECHNOLOGY Products needed. HANJIU TECHNOLOGY has all the best-selling BMP series, BMR series, BMS series and BMK series hydraulic motors on the market. The rich product types can satisfy your pursuit of hydraulic motor performance to the greatest extent.



Choosing to use a hydraulic system is nothing more than its high efficiency. If the power supply of a hydraulic system is insufficient, even if the quality of other hydraulic components is very high, it will not play the best role. If you want the hydraulic system to maximize its effectiveness, HANJIU TECHNOLOGY's hydraulic motor is your best choice!



Equipped with HANJIU TECHNOLOGY's hydraulic motor, it has strong endurance and high cost performance, ensuring that your hydraulic system can run faster and more smoothly. With such a good supplier of hydraulic components as HANJIU TECHNOLOGY, don't you throw away the low-end products you are using now?
