104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
Price:
Contact the seller to get a quote
MOQ:
100 Pieces
Delivery Time:
55 work days
Brand:
HANJIU
Product Description

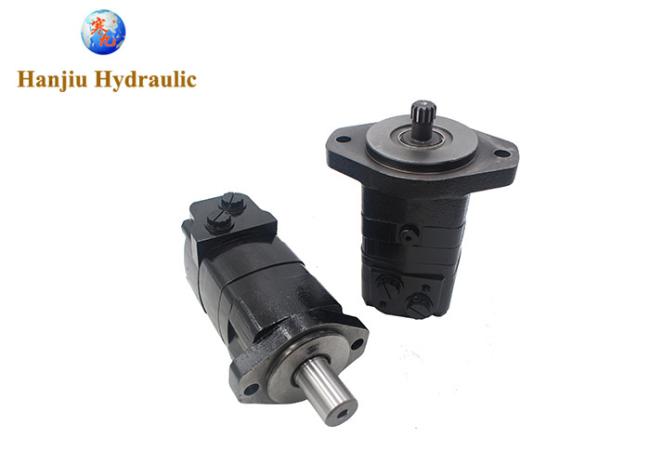

104-1027-006, Hydraulic Geroler Disc Valve Motor 2000 series Standard, 244.3 cm³/r Max Geometric Displacement
This is a 104-1027-006 replacement motor.
OVERVIEW
* Three-zone design for longer life and true bi-directionality
* Bearings that meet the highest standards of the industry
* Options to optimize performance in every application
* Integrated crossover relief valve option
* Two-bolt flange: SAE A with 3-1/4" pilot diameter
* drain: 7/16"-20 UNF-2B O-ring port size 4
SPECIFICATIONS
| Series | 2000 - Standard |
| Displacement | 14.91 in³/r |
| Mounting Type | 2-Bolt Flange - 3.25 in Pilot - SAE A |
| Shaft Type | Straight |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | 1-1/4 in Straight - Straight Key |
| Seal Type | Standard |
| Drain Connection Size | .4375-20 Unf-2b O-ring Port Size -4 |
