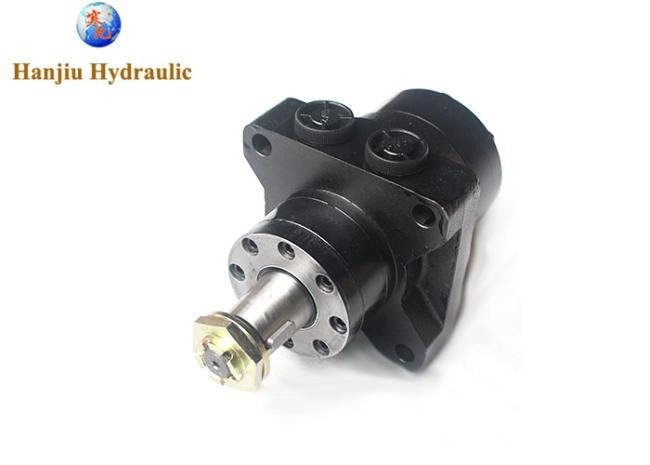

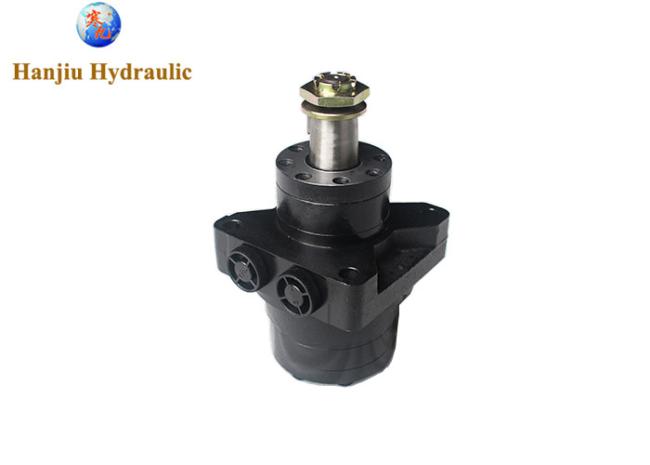

hydraulic wheel motor Danfoss OMRW motor 1-1/4" tapered1:8 threaded shaft, 4-Bolt A mount


Product details:

Output volume (cc/rev): 100.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"

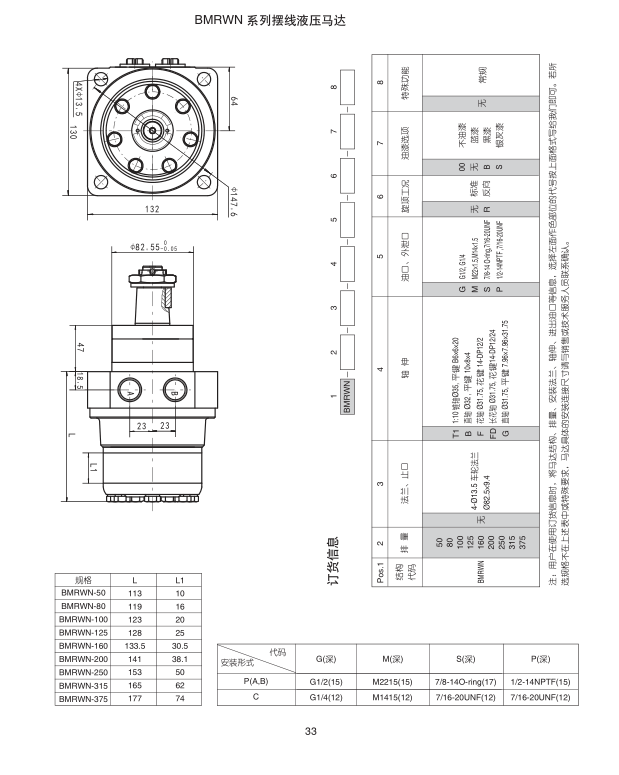

L (mm): 123.00
L1 (mm): 20.0


ORDER DETAILS

RELATED DANFOSS TYPE CODE

Orbital Motors Application Areas

The orbital motors are used in the following application areas:

• Construction equipment

• Agricultural equipment

• Material handling & Lifting equipment

• Forestry equipment

• Lawn and turf equipment

• Machine tools and stationary equipment

• Marine equipment

• Special purpose

Our hydraulic motors are very practical and adaptable. Whether it is agricultural machinery, forestry machinery, mining equipment or construction machinery, you can find the most suitable products. Choosing the hydraulic motor of Hanjiu Technology, you can safely use it in tree stump grinder, augers, trenchers, log splitters, etc., and it will definitely bring the strongest power support to your hydraulic system.
