665cc Eaton Geroler Motor Marine Winch Drive 10000 Series
Price:
350
MOQ:
100 Sets
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description
Hydraulic Geroler Disc Valve Char Lynn Eaton Motor 119-1042-003 10000 Series 665cc
Marine Winch Drive Motor
OVERVIEW
Lowest pressure drop motor in the industry
This is an Aftermarket CHAR-LYNN
119-1042-003
119-1041-003
119-1043-003
119-1040-003
SPECIFICATIONS
| Series | 10000 - Standard type |
| Displacement | 665 cm³/r |
| Mounting Type | 4-Bolt Flange - 5 in Pilot |
| Shaft Type | Straight |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | 2-1/4 in Straight - Straight Key |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size |
1 1/4 inch Split Flange
|
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:
- J (129-) HANJIU BMM
- H (101-) HANJIU BMPH
- S (103-) HANJIU BMRS
- T (158-) HANJIU BMRS
- W (162-) HAJJIU BMRW

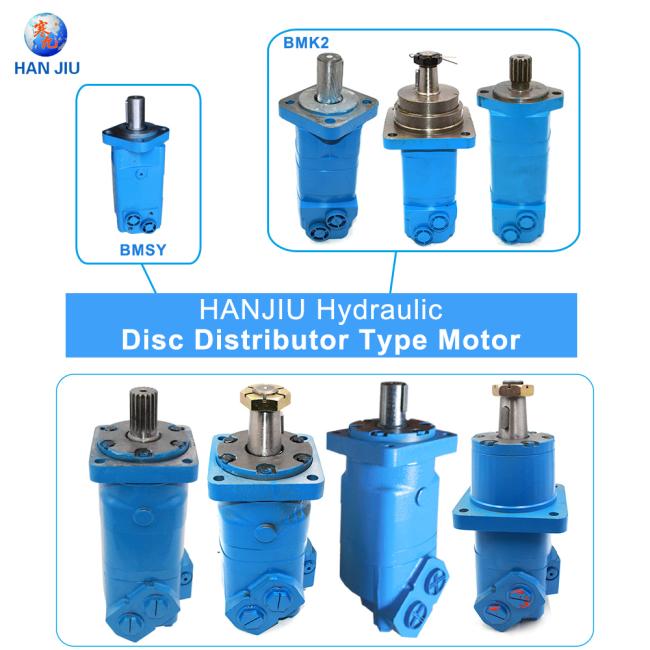

- 2000 (104-, 105-, 106-, 193-) HANJIU BMK2
- 4000 (109-, 110-, 111-) HANJIU BMK4

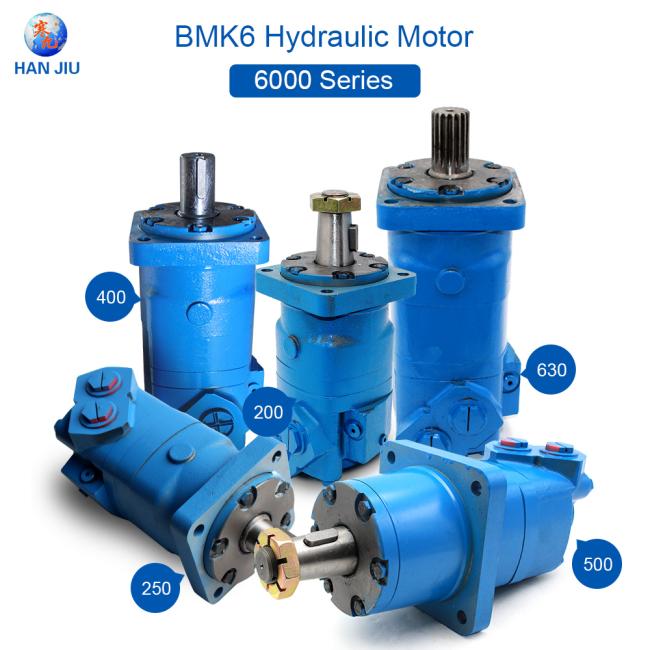

- 6000 (112-, 113-, 114-) HANJIU BMK6
- 10000 (119-) HANJIU BMK10
