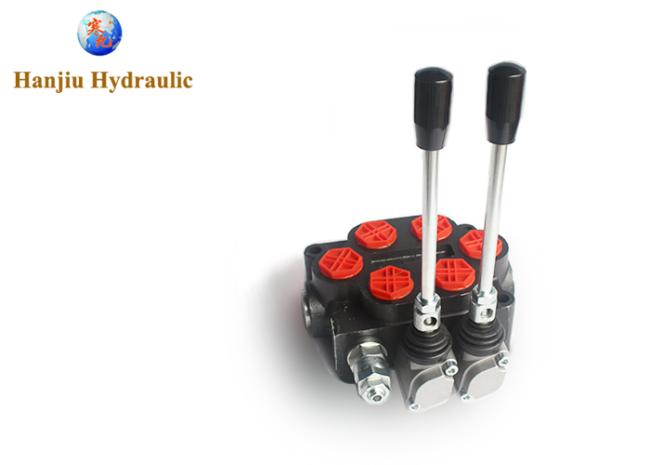

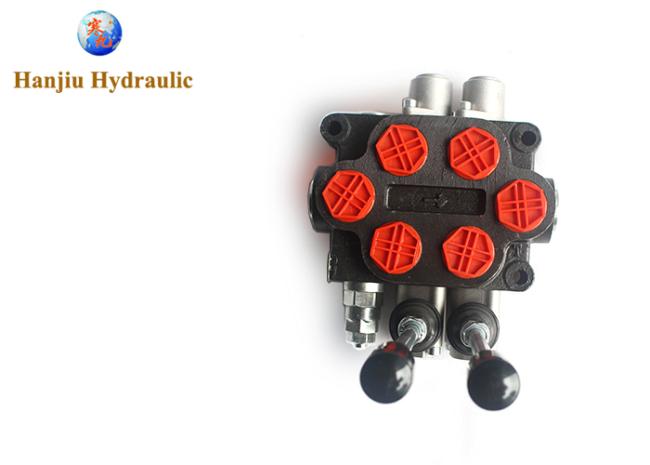

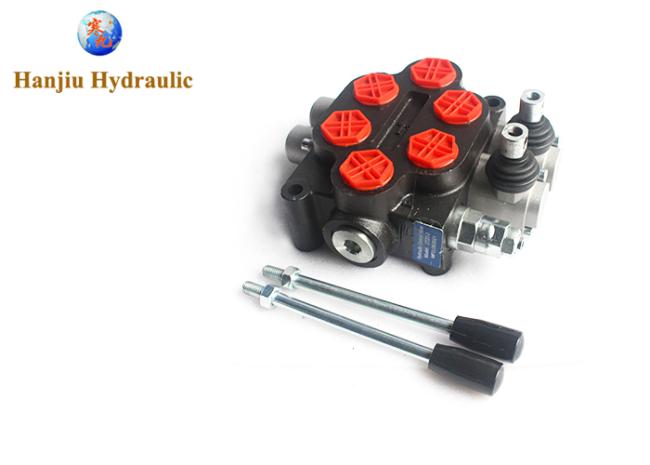

2 Spool Hydraulic Directional Control Valve Double Acting Cylinder Close Center Spring Return

Specifications

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 2
• Material of Construction = Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 90 liters/min (24 Gallons per Minute)
• Max Working Pressure = 315 Bar (4725 PSI)
• Built in Relief Valve = Adjustable (factory set at 1800 PSI)
• Ports Sizes Pressure and Tank Port 1/2" BSPP   A & B Ports 3/8" BSPP
• Operating temperature range: -20 °C to + 80°C
• Weight 6 KG

This a High Quality Valve and has many outstanding features, including.

• built in adjustable relief valve
• high performance,
• high efficiency,
• small volume,
• mass flow,
• leak resistance.

In additional to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic and or remote control methods are also available including.

• Motor Spool
• Detent kit no spring return
• Detent kit with spring return
• Pneumatic spool control,
• Hydraulic Control
• Electric-solenoid control
• Joystick cable control.

Features

• Compact construction.
• Low pressure drop.
• Long service life.
• High efficiency.
• Choice of various ports and circuit valves.
• Spring return.
• High accuracy spool is hardened for long term accuracy.
• Sub-plate mounting.
• Handle shift operation.

If you know about hydraulic systems, you will never doubt the importance of hydraulic directional control valves. The hydraulic directional control valve, as a control element that controls the specific direction of the mechanical oil circuit, determines the internal operating efficiency of the entire mechanical equipment. A hydraulic directional control valve that can indicate the direction of the oil circuit can be described as a beacon in the hydraulic system.

Once industrial machinery and equipment cannot operate normally, it is necessary to check whether the hydraulic directional control valve is damaged. The hydraulic directional control valve that cannot be used as usual will cause failure of the internal oil circuit of the equipment, which will cause the entire system to enter a paralyzed state. The position of hydraulic directional control valve is so important, do you still dare to buy fake and inferior products?
