Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa
Price:
Negotiable
MOQ:
30 Sets
Delivery Time:
10-15 work days
Brand:
HANJIU
Product Description

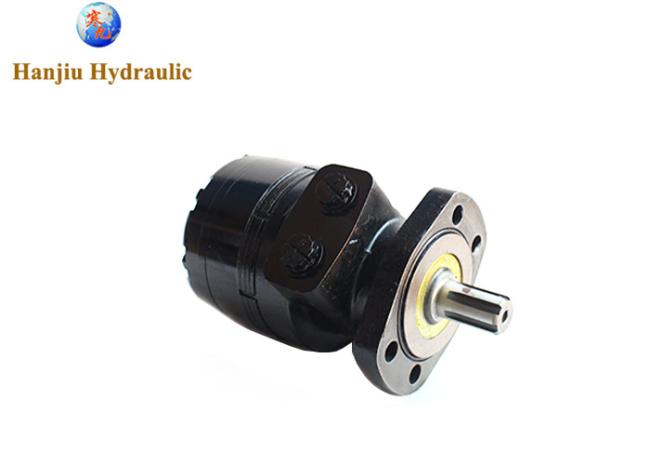

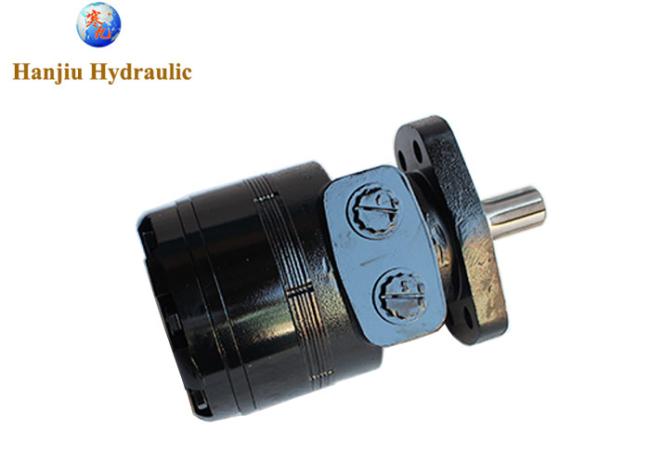

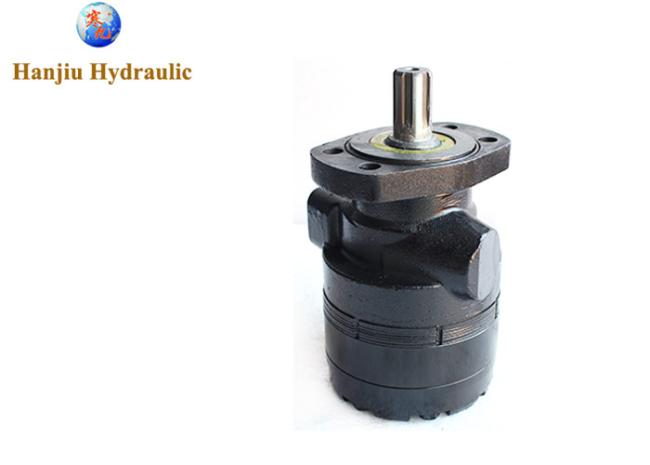

ROSS TRW Torq Motor MB220101AAAA New Hydraulic Motor
.
Product details:
| 1, | model number | BMER |
| 2, | displacement | 375ml/r |
| 3, | flange | magneto Mount |
| 4, | shaft | SAE 6B |
| 5, | oil port | 7/8-14 o-ring |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | WHITE RE/ TRW MB/ DANFOSS 500 |
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |

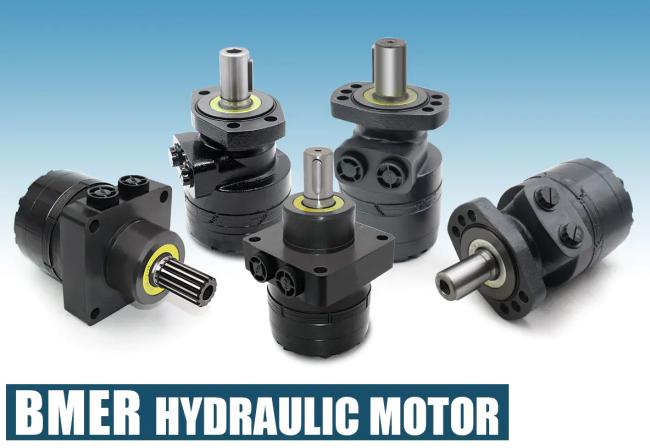

The BMER series has BMER 250, BMER250, BMER375, BMER475, BMER 750 and other hydraulic motors of different specifications. For you to choose. The hydraulic motors of the BMER series use advanced Geroler gear sets with high flow and high pressure, which have good low-speed stability and high volumetric efficiency.
This hydraulic motor can start at the fastest speed even in a low pressure environment, and the shell can also provide high pressure and high torque capabilities, which can be widely used in agricultural machinery, forestry machinery, mining equipment and other fields. Such as stump grinders, hedge trimmers, retractors, cranes, etc. The reason why our products are widely used in these important fields is that our products are of excellent quality, and the other is that our products are extremely cost-effective. Purchasing BMER series hydraulic motors can reduce life cycle costs and maintain high volume. Efficiency, so that the hydraulic system can ensure long-term stable operation.
-
