OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
Price:
Negotiable
MOQ:
10pieces
Delivery Time:
25-30DAYS
Brand:
HANJIU
Product Description

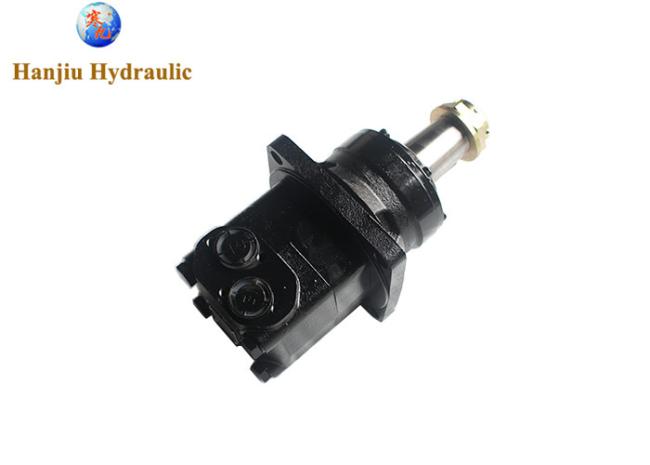

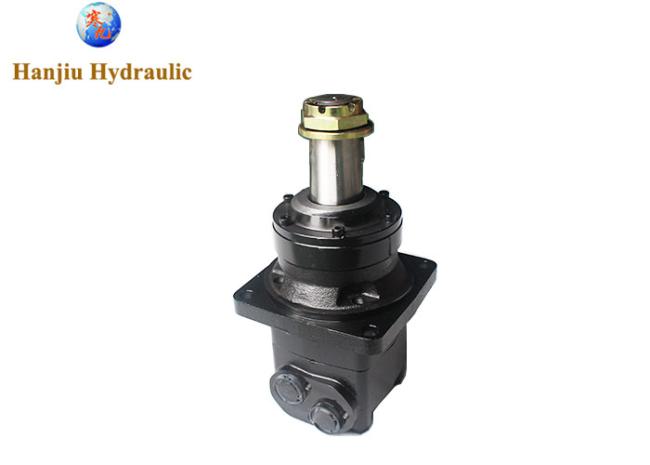

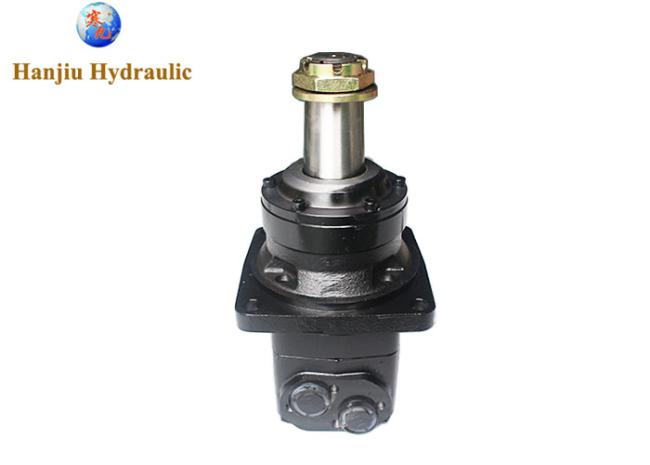

OMVW630HD ORBITAL MOTOR HARVESTER HEAD SPARE PARTS DANFOSS 151B3158 TAPERED 1:10 KEY SHAFT
| Description |
| Manufacturer: HANJIU |
| Country of origin: CHINA |
| Condition: NEW packaging |
| Materialnumber: 151B3158 |
| Modelcode: BMVW |
| Motorseries: O-Series |
| Displacement: 630 |
| Mounting Flange: wheel flange |
| Mounting Thread Dimension:φ60mm |
| Shaft Style: tapered shaft |
| Shaft Size: 1-10 |
| Shaft Key: B16 X10X32 mm (DIN 6885) |
| Port Size: Side port |
| Port Dimension: G 1 |
| Drain Port Style: Standard |
| Drain port Dimension: G 1/4 |
| Brake Release Port: None |
| Brake Release Port Dimension: None |
| Painted: BLACK |
| Special Features External 1: None |
| Special Features External 2: None |
| Special features External 3: None |
| Dust Seal: Standard |
| Shaft Seal: NBR - Standard |
| Front bearing: Tapered roller bearing |
| Rear bearing: Tapered roller bearing |
| Gear wheel set: Standard |
| Check valve: Yes |
| Valve function: None |
| Special Features Internal 1: None |
| Special Features Internal 2: None |
| Packaging: Single pack |
| Option Type: Standard |
HANJIU Motor BMVW inerchange OMVW 630 HD 151B3158 Rotor
The hydraulic motor is used as the hydraulic motor for the traction roller on the
Waratah (John Deere) 758HD and HTH470HD harvester heads.
The working volume is 630 cc/rev, and the working pressure is 200 bar.
Waratah (John Deere) order codes F034495, F069034.
A similar product is the MVW630KLLHD hydraulic motor manufactured by M+S.
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
