Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement
Price:
150 - 170 us dollar
MOQ:
100 Pieces
Delivery Time:
55 work days
Brand:
HANJIU
Product Description

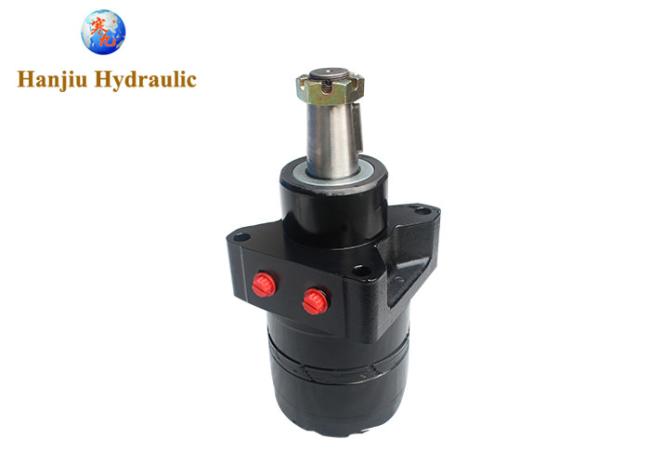

Parker TG0280LS080AAFW TG Series LSHT Hydraulic Wheel Motor replacement
This is a Parker TG0280LS080AAFW replacement motor.
| Specifications |
| Series: TG |
| Shaft: 1 1/4" Tapered |
| Rotation: Standard |
| Displacement (cm3/rev): 0280 |
| Mounting: Wheel, Front Brake |
| Geometric Displacement: 280 cm3/rev (17.1 in3/rev) |
| Maximum Speed: 334 rev/min |
| Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 95 lpm (25 gpm) |
| Max. Differential Pressure (continuous / intermittent): 207 bar (3000 PSID) / 276 bar (4000 PSID) |
| Maximum Supply Pressure: 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: 796 Nm (7044 lb-in) / 1073 Nm (9499 lb-in) |
| Maximum Performance: 31 KW (42 HP) |
| Minimum Starting Torque - Continuous / Intermittent: 675 Nm (5972 lb-in) / 870 Nm (7699 lb-in) |
| Maximum Side Load at Key: 16000 N (3597 lb) |
| Porting Code: S |
| Porting: 7/8-14 SAE |
| Shaft Code: 08 |
| Rotation Code: 0 |
| Apply to: Hustler 604467 |
| Options code: AAFW |
| Option: Fluorocarbon (Viton) Seals, High Temperature Commutator Seal, Black Paint |
| Mounting code: L |

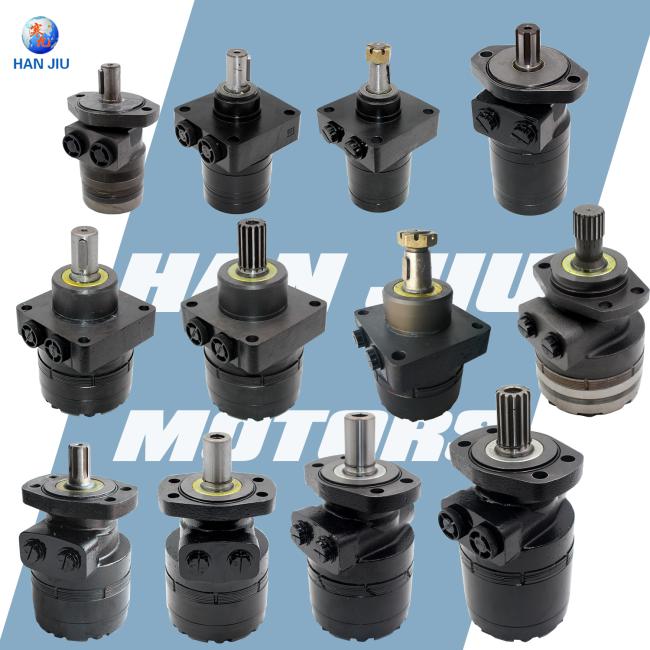

We have a full range of Parker high-end replacement Motors.
We are able to provide you TE, TF, TG, TB, TC, TJ series to cover all your local request with more reasonable cost and stable lead time .
Below are some examples.
If you are looking for high-end Parker replacement motors, contact us.
