151b3016 Orbit Hydraulic Motor Omt 400cc With 45mm Taper Shaft Side Port Replacement
151B3016 - ORBITAL MOTOR OMT 400CC with 45mm taper shaft Side port , replacement
This is 151B3016 Danfoss replacement Orbital Motor
| Shaft Style | Tapered - Cone 1:10 |
| Shaft Size | 45 mm tap |
| Shaft Key | B12 x 8 x 28 mm (DIN 6885) |
| Port Style | Side port |
| Port Dimension | G 3/4 |
| Drain Port Style | Standard |
| Drain Port Dimension | G 1/4 |
| Painted | None |
| Geometric Displacement | 410,9 [25.07] |
| Max Inlet Pressure Cont | 210 [3050] |
| Max Inlet Pressure Int | 250 [6330] |

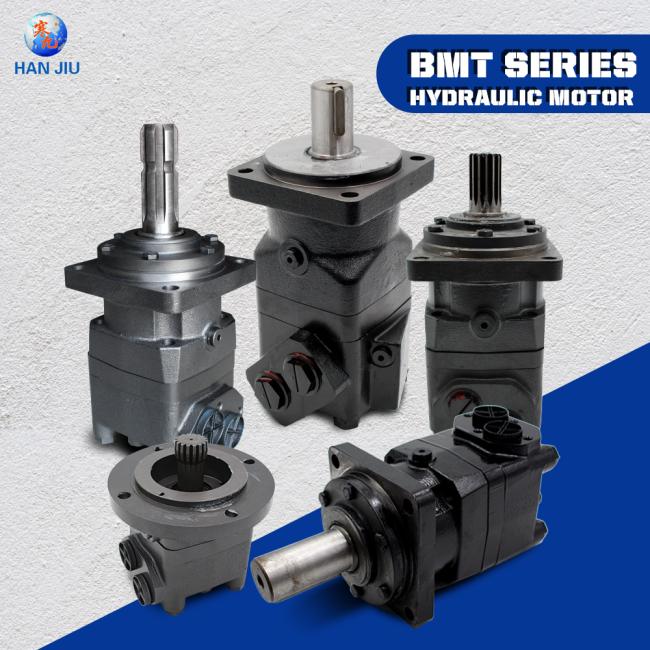

Orbital Motors
We provide a wide range of hydraulic motors of different types, sizes, and with different versions of outlet shaft. The range includes motors with displacements from 8 to 1000 cc/rpm. The speed may vary approximately from 2500 rpm/min for the smallest motor up to 600 rpm/min for the largest one.
Orbital motor for heavy applications.Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. BMT has internal flush valves.
