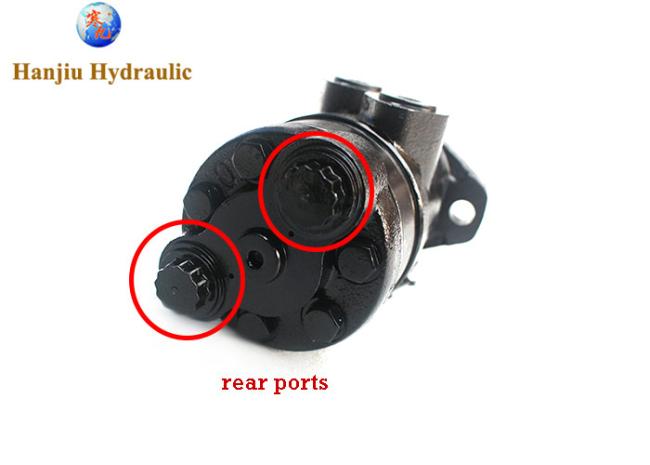

X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
Price:
47 - 60 usd
MOQ:
100 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

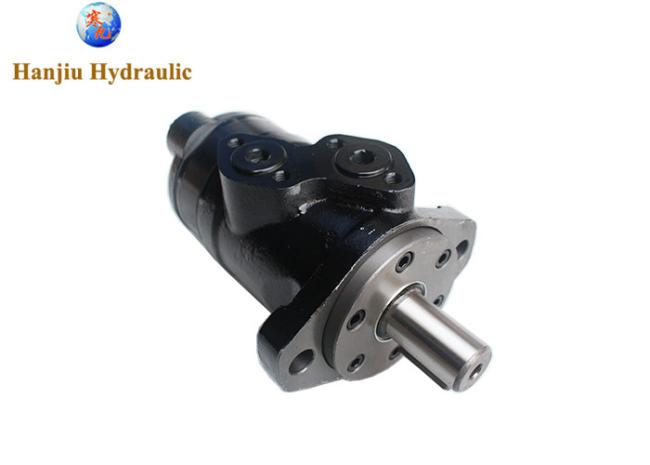

OMP MOTOR X 160 SHAFT Ø25MM Rear Port Cylindrical Shaft A2 2 Bolt flange
Description:
Hanjiu BMPX160 = Danfoss OMPX160 Rear Port
Specifications:
| Type | BMPX |
| Displacement | 160CC |
| Shaft | 25MM Cylindrical |
| Flange | A2 (2 Bolt 106.1 pcd) |
| Port Position | End |
| Shaft Seal | High Pressure |
| Drain | Yes |
Hanjiu offers range of geroler and gerotor motors that are compatible with Danfoss on form, fit and function.
We are experts when it comes to all Danfoss Orbital Motors, including the below BMP motors with SAE A 2 Bolt
Cylindrical Shaft 1/2" BSP Ports.
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 |
8 |
|
