6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm
Price:
start from 210 usd
MOQ:
100 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description
Eaton Motors, 6000 series replacement, 4 bolt square flange, pilot 160mm , shaft 50mm
This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Hanjiu from China, which is our specialty.
Quick review : BMK6-630-J6-A-D
Displacement : 630 ml/r

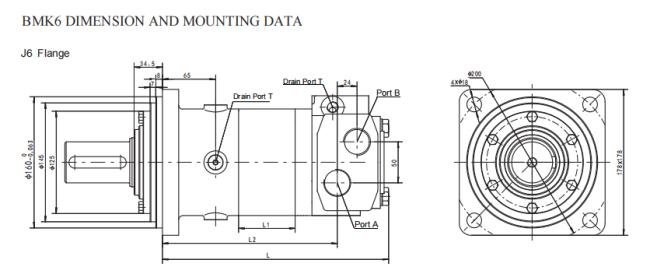

Flange,Pilot, Ports : 4-Ø18 Square-flange,Pilot Ø160×8

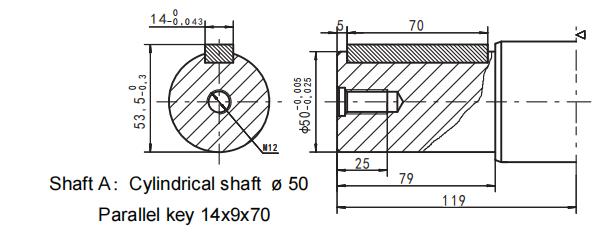

Output Shaft : Cylindrical Shaft Ø50,Parallel key 14×9×70
Port : G 1 Manifold
Rotation Direction : Left and Right
Spec:
| Type | BMK6 | |
| 630 | ||
| Geometric displacement (cm3 /rev.) | 623 | |
| Max. speed (rpm) | cont. | 240 |
| int. | 360 | |
| Max. torque (N•m) | cont. | 1480 |
| int. | 1890 | |
| Max. pressure drop (MPa) | cont. | 17.5 |
| int. | 22.5 | |
| peak | 24 | |
| Max. flow (L/min) | int. | 150 |
| cont. | 225 | |
| Weight kgs | 29.6 | |
Our motors are 100% compatible with Eaton Chay-lynn. We all have motors that can be matched with them, with the same quality, complete models and fast delivery. It can meet the demand for Eaton Chay-lynn motors of older models, increase competitiveness, reduce costs, increase turnover, and improve your prestige position in the market.
If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your request and we will work for you.
