Char Lynn 6000 Series Gerotor Hydraulic Motor Replacement Pilot 127mm Shaft 38.1mm
Price:
start from 225 usd
MOQ:
100 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description
Char-lynn gerotor motor 6000 series replacement, 4 bolt square flange, pilot 127mm , shaft 38.1mm
This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Hanjiu from China, which is our specialty.
Quick review : BMK6-1000-CC-FE-SF5
Displacement : 1000 ml/r

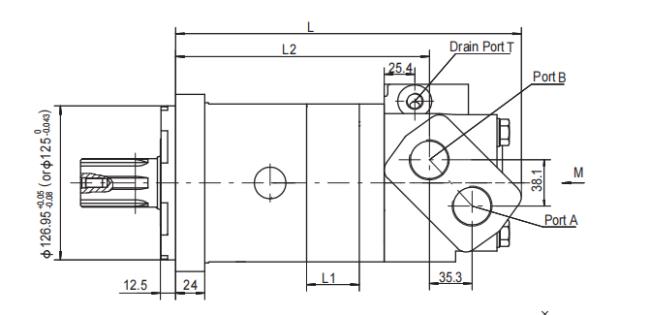

Flange,Pilot, Ports : 4-Ø14.2 Square-flange,Pilot Ø127×12.5

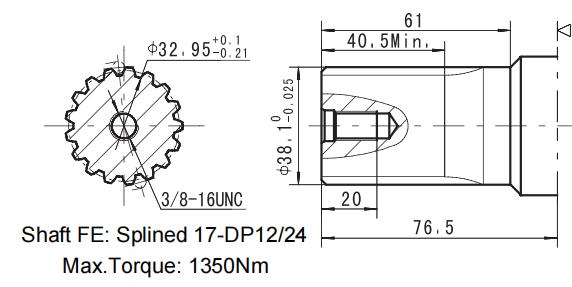

Output Shaft : Shaft Ø38.1, spline tooth 17-DP 12/24
Port : 1-5/16-12UN
Rotation Direction : Left and Right
Spec:
| Type | BMK6 | |
| 1000 | ||
| Geometric displacement (cm3 /rev.) | 981.6 | |
| Max. speed (rpm) | cont. | 152 |
| int. | 230 | |
| Max. torque (N•m) | cont. | 1675 |
| int. | 1860 | |
| Max. pressure drop (MPa) | cont. | 14 |
| int. | 14 | |
| peak | 17 | |
| Max. flow (L/min) | int. | 150 |
| cont. | 225 | |
| Weight kgs | 32 | |
Our motors are 100% compatible with Eaton Chay-lynn. We all have motors that can be matched with them, with the same quality, complete models and fast delivery. It can meet the demand for Eaton Chay-lynn motors of older models, increase competitiveness, reduce costs, increase turnover, and improve your prestige position in the market.
If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your request and we will work for you.
