BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
Price:
start from 45 usd
MOQ:
100 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description
Geroler and Gerotor motor BMP-50-2-A-D, 50 ml/r, 2 bolt flange, Shaft Ø25mm
BMP is a hydraulic orbital motor widely used in agricultural machinery and plastic machinery. It has the characteristics of safety, excellent performance and low cost.
Quick review : BMP-50-2-A-D
Displacement : 50 ml/r

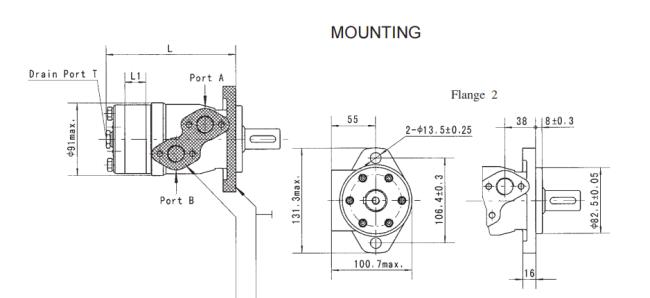

Flange,Pilot : 2-Ø13.5 Rhomb-flange ,pilot Ø82.5×8

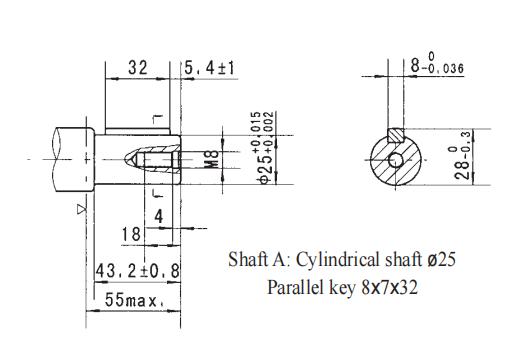

Output Shaft : Shaft Ø25,parallel key 8x7x32
Port : G1/2 Manifold Mount , 4×M8, G1/4
Rotation Direction : Left and Right
Spec:
| Type | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | |
| 36 | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | ||
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N•m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.7 | 6.9 | 7.4 | 8 | |
