60liters Spring Return Double Acting 12v Hydraulic Directional Control Valve For Forestry Machinery
Price:
Negotiable
MOQ:
30 Sets
Delivery Time:
10-15 work days
Brand:
HANJIU
Product Description

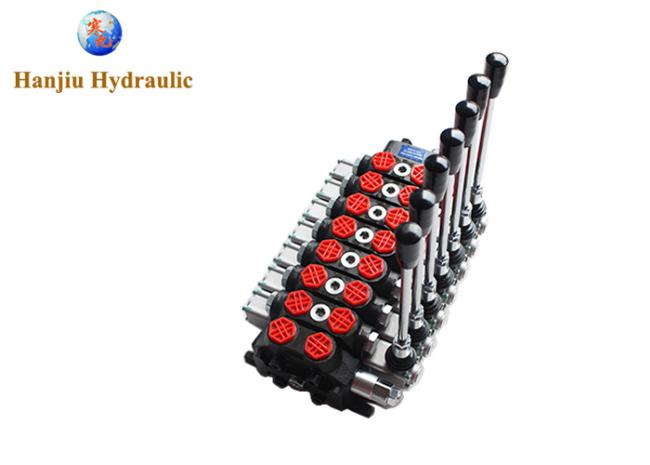

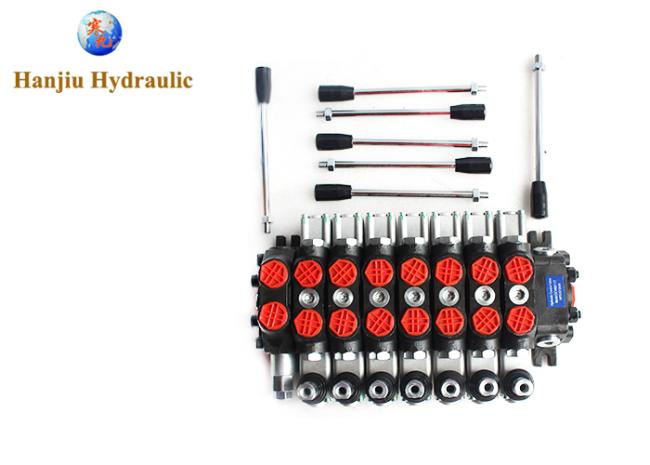

Hydraulic Directional Valves 60liters Spring Return Double Acting For Forestry Machinery
DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.
DCV60 is used for switching on/off and directing the working fluid between head flow generators,head flow consumers and the tank.It is a sectional directional control valve with manual control.They can be integrated in packages of up to 8 sections.
- Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
-
Spool function:A, O, Y, P, etc.
-
Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
-
Circuit type:parallel,series-parallel
-
C port(oil bridge) as hydraulic source for other parts
-
Structure:Sectional
|
Norminal Flow
|
60 L/min
|
|
Max Flow
|
16GPM |
|
Max Pressure
|
315 bar/5076PSI
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | 7sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
RELATED PRODUCTS:

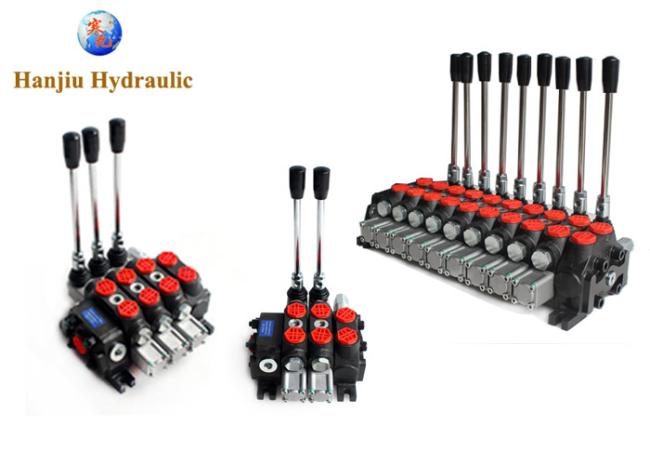

We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.
| P40 | Monoblock |
| P80 | Monoblock |
| HSV6(12V/24V) | Sectional |
| DCV 40 (1-6) DCV 45 (1-8) |
Monoblock |
| DCV60 (1-12) | Sectional |
| DCV100 (1-12) | Sectional |
| DCV140 (1-12) | Sectional |
| DCV200 (1-12) | Sectional |
