Lkf-60 G1/2 Variable Flow Control Valve For Hydraulic Driven Wood Cursher
Price:
45 usd
MOQ:
50 Sets
Delivery Time:
15 - 35 work days
Brand:
HANJIU
Product Description

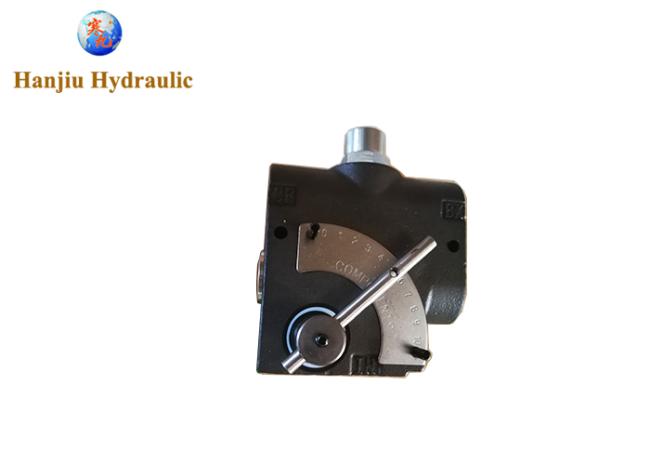

LKF-60 G1/2 Hydraulic Flow Control Valve, variable flow control valve for hydraulic driven wood cursher
SPECIFICATION:
| Model | Conection NPT | Flow GPM | Pressure |
| LKF- 40- -3/8NPT | 3/8NPT | 0-30L/min(0-8gpm) | 210 bar |
| LKF- -60-1/2NPT | 1/2NPT | 0-60L/min(0-16gpm) | |
| LKF-114-3/4NPT | 3/4NPT | 0-114L/min(0-30gpm) |
LKF model is a full range pressure compensating variable flow control.
It is designed so that the orifice area varies as the lever is rotated.
The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports.
An adjustable ball spring relief valve allows for pressure compensated how up to the pressure setting on the relief valve.
Relief valves are preset at 1500psi and filed adjustable from 750 to 3000psi.
FLOW CONTROL VALVE
HIGH PRESSURE FLOW CONTROL VALVE
ACCURATE FLOW CONTROL VALVE
FLOW CONTROL VALVE MASS FLOW MOTOR
COMPENSATING FLOW CONTROL VALVE
