Dcv200s-3 Hydraulic Directional Control Valve With Series Circuit Working Pressure 315 Bar

Price Negotiable

Price: Contact the seller to get a quote

MOQ: 100 Sets

Delivery Time: 25 - 35 work days

Brand: HANJIU

Product Description

DCV200S-3 directional valve with series circuit, working pressure up to 315 BAR

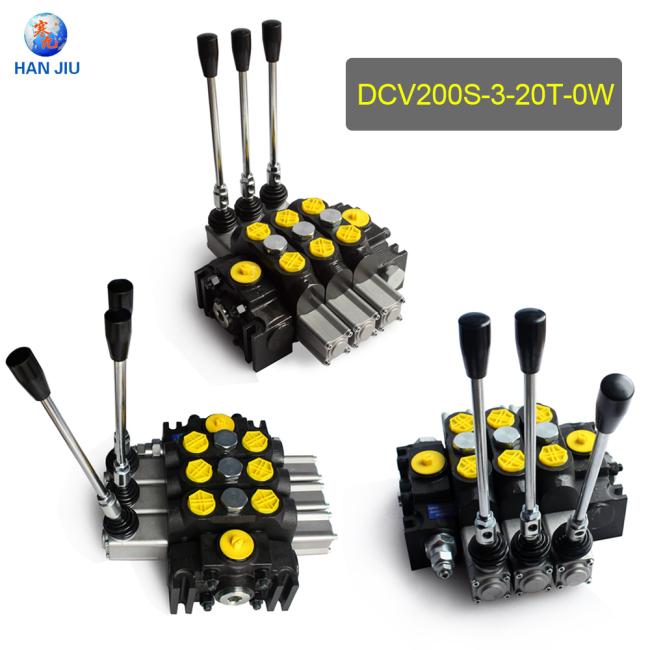

DCV200S-3-20T-0W

Model	DCV200S-3-20T-0W
Flow	200 lpm
Spool	3 spool
Relief valve setting pressure	200 bar
Founction	Spring return and Detent

DCV200 DIRECTIONAL CONTROL VALVES; FOR FLOWS UP TO 200 LPM AND WORKING PRESSURES UP TO 315 BAR

Linear Actuation Valves and Components
1/2" NPTF Ports
3/4" NPTF Ports
SPRING RETURN AND DETENT OPTIONS

These 200 LPM manual spool valves are available with an externally adjustable pressure relief valve on all but the closed center models. NOTE: The maximum recommended flow rate for the internal relief valve at 315 bar 200 LPM.

If not customer specified, assemblies are automatically furnished with relief set at 200 bar. For units without a relief valve function, please consult our factory.

CAUTION: Relief valve pressure adjustments should not be made while the system is under pressure.
