P81- 1 Lever Log Splitter Control Valve 80 Lpm Monoblock
P81- 1 LEVER LOG SPLITTER CONTROL VALVE 80 LPM, Monoblock Valves
P81 type splitting machine valve is through the lever cation make valve core do axial movement and the oil circuit to switch straight acting reversing valve. The splitting machine valve owns overload protection. compact structure,flexible control, easy to use and reliable, dedicated to splitting machine oil circuit control. Can make the splitting machine fast and stable work.
P81 HYDRAULIC CONTROL VALVE HAS A SINGLE SPOOL BANK WITH ADJUSTABLE RELIEF VALVE. LOG SPLITTER CONTROL VALVE COMES WITH DOUBLE ACTING (A) SPOOL, LEVER LOCKS IN POSITION AND RETRACTS AUTOMATICALLY WHEN SPOOL RELEASE PRESSURE IS ACHIEVED.

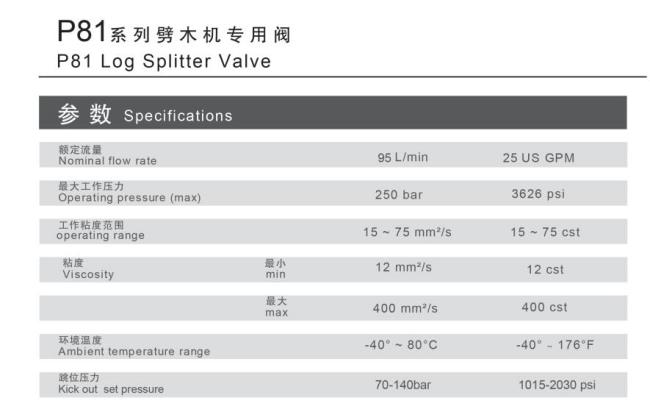

SPECIFICATION
| MODEL | P81 |
| MATERIAL | CAST IRON BODY |
| MAX WORKING PRESSURE | P = 250 BAR, T = 50 BAR, A/B = 300 BAR |
| MAX FLOW RATE | 80 LPM |
| OPERATING TEMPERATURE BETWEEN | -40℃ TO +60℃ |
| RELIEF VALVE SETTING | 180 BAR STANDARD (MAX = 250 BAR) |

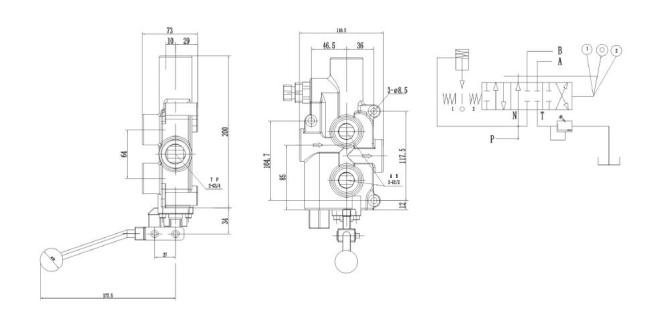

TO VIEW TECHNICAL DATA SHEET PLEASE VIEW THE PDF BELOW
