Stump Grinder Hydraulic Monoblock Control Valve 5 Spool 40 Liters
Price:
Contact the seller to talk
MOQ:
100 Sets
Delivery Time:
25 - 35 work days
Brand:
HANJIU
Product Description

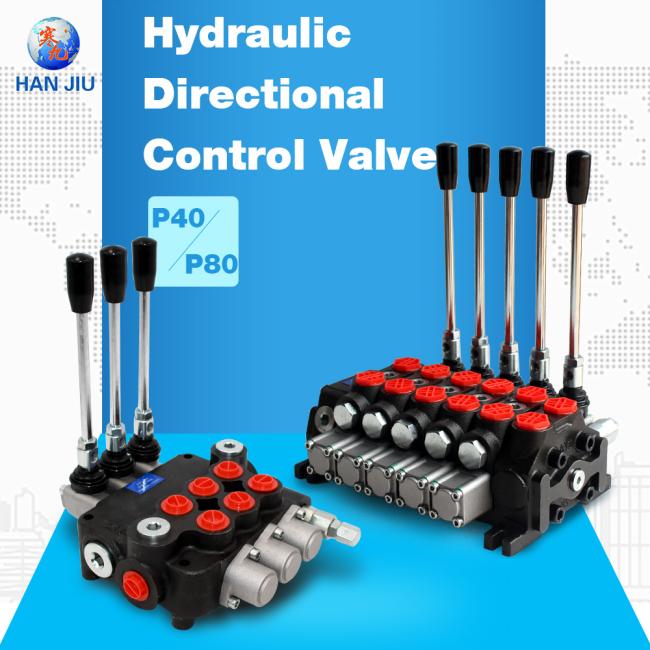

Stump grinder hydraulic valve 5 Spool 40 Liters Monoblock Directional Control Valve
Simple and compact designed monoblock control valve from 1-7 sections for open and closed centre hydraulic systems
5 Spool Hydraulic Directional Control Valve, widely used on Stump grinder machinery
easy operated, control hydraulic cylinders, hydraulic motors, hydraulic pumps...
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 40 | 20 | 40 | ≤1 | -20~+80 | 10~400 | ≤10 |
Number Of Spools :
5
Flow :
13 GPM
Pressure :
3600 PSI
Inlet Port :
SAE 10
Spool Type :
4-way 3 pos Open Center
Outlet Port :
SAE 10
Spool Action :
3-pos Spring center
Working Ports :
SAE 8
Brand :
Hanjiu
HANJIU Hydraulics is one of the leading hydraulic directional control manufacturers in China
It is our purpose to satisfy any rigorous hydraulic demands.
OUR CORE VALUES ARE:
– Quality product
– Outstanding customer service
– Loyal customers
– Deliver promises
– Flexible approach
