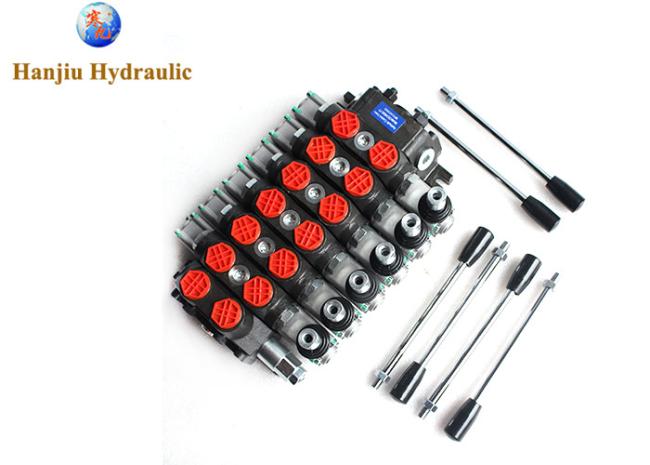

Sds100 60lpm Manual Directional Control Valve Drilling Rig Machinery Parts 6 Banks
SDS100 60LPM valve for drilling rig machinery parts 6banks manual control valve
Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
- Fitted with a main pressure relief valve and a load check valve on every working section
- Available with parallel, tandem or series circuit.
- Optional carry-over port.
- A wide range of fixed setting antishock+anticavitation port valves.
- Intermediate sections for several types of circuit.
- Available manual, pneumatic, hydraulic and ON/OFF and proportional electro-hydraulic spool control kits.
|
Norminal Flow
|
60 L/min
|
|
Max Flow
|
16GPM |
|
Max Pressure
|
315 bar/5076PSI
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | 6sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
RELATED PRODUCTS:
We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.
| P40 | Monoblock |
| P80 | Monoblock |
| HSV6(12V/24V) | Sectional |
| DCV 40 (1-6) DCV 45 (1-8) |
Monoblock |
| DCV60 (1-12) | Sectional |
| DCV100 (1-12) | Sectional |
| DCV140 (1-12) | Sectional |
| DCV200 (1-12) | Sectional |
