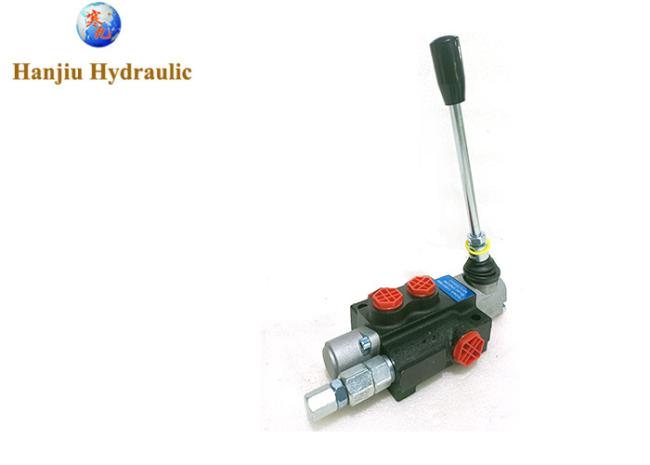

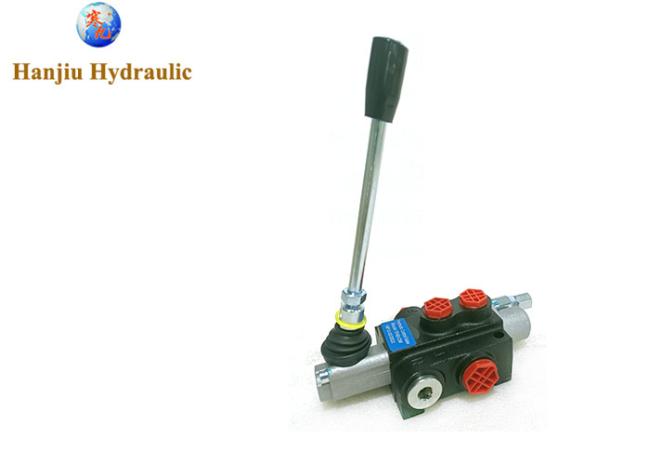

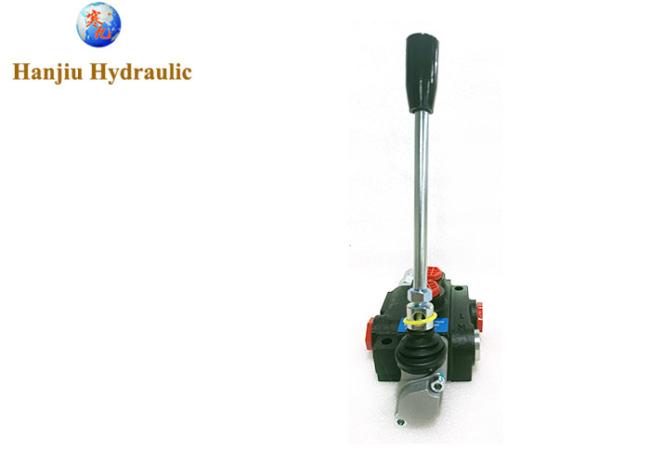

Mini Loader Hydraulic Spool Valve 1 Section With 1 Spools A 40l/Min Detent Valve Closed Center
Price:
start from 21.00 usd
MOQ:
100 Sets
Delivery Time:
15 - 45 work days
Brand:
HANJIU
Product Description
Mini Loader Hydraulic Spool Valve 1 Section With 1 Spools A 40l/Min Detent Valve Closed Center
Hanjiu Technology offers a variety of hydraulic valves, provides direction control to pressure relief to specific functions in your mini loader's hydraulic operations.
1 section hydraulic spool valve with G3/8 BSP ports.
Max Flow: 40 lpm
Max Pressure: 250 Bar ( 25 Bar on T)
Ports: G3/8BSP
| Nominal flow rate | 40 l/min | 11 US gpm | |
| Operating pressure (maximum) | 250 bar | 3626 psi | |
| Back pressure (maximum) | on outlet port T | 25 bar | 3626 psi |
| Fluid temperature range | with NBR(BUNA-N) seals | from - 20° to 80°C | from - 4° to 176° F |
| with FPM(VITON) seal | from - 20° to 100°C | from - 4° to 212° F | |
| Viscosity | operating range | from 15 to 75 mm2 /s | from 15 to 75 cst |
| min | 12 mm2 /s | 12 cst | |
| max. | 400 mm2 /s | 400 cst | |
| Ambient temperature range | from - 40° to 60°C | from - 40° to 140° F |
More Valve available:
HANJIU Hydraulic supply wide range of hydraulic valves, hydraulic monoblock valves, control valves, section valves
mobile control valves,flow rate valve,solenoid valves...serve for agricultural machinery, construction equipments,
industrial machines and fluid power company.
