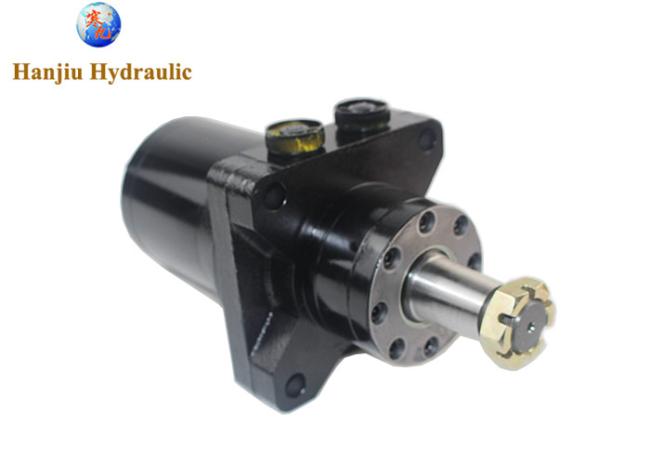

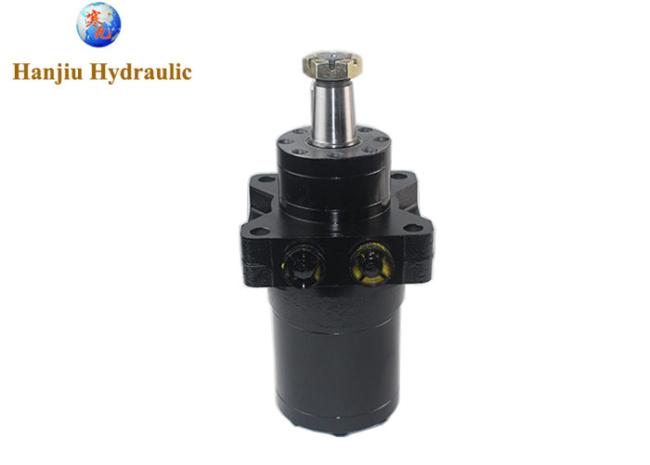

1-1/4" Tapered Hydraulic Wheel Motor OMRW375 Orbit Motor Shaft 4 Bolt Mount


Product details:

Output volume (cc/rev): 375.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 123.00
L1 (mm): 20.0
