Parker Orbit Hydraulic Motor Sae A" 2 Bolt 125 Cm3/Rev 1" Keyed Te Series

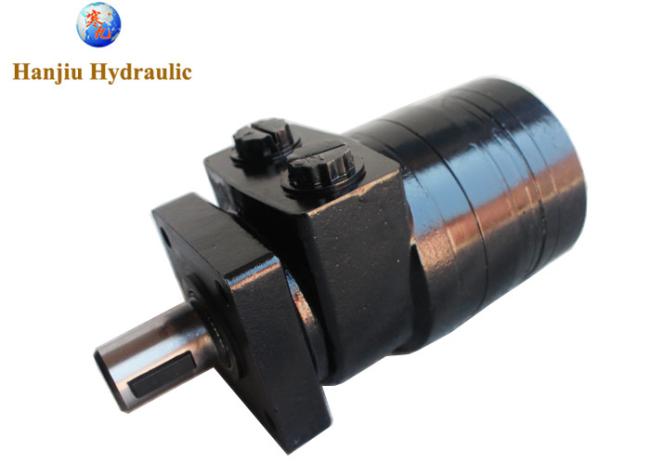

Parker Torqmotor SAE A" 2 Bolt 125 Cm3/Rev 1" Keyed TE Series hydraulic motors
Details specifications
| Series: | TE |
| Shaft: | 1" Keyed |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0125 |
| Mounting: | SAE "A" 2 Bolt |
| Ports: | G1/2 |
| Geometric Displacement: | 125 cm3/rev (10 in3/rev) |
| Maximum Speed: | 441rev/min |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm (12 gpm) / 57 lpm (15 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 140 bar (2030 PSID) / 190 bar (2750 PSID) |
| Maximum Supply Pressure: | 200 bar (2900 PSID) |
| Maximum Torque - Continuous / Intermittent: | 245 Nm / 335 Nm |
| Maximum Performance: | 14.1 KW (23.4 HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 245 Nm / 335Nm (3637 lb in) |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
HANJIU TECHNOLOGY has a wide range of types of fist products hydraulic motors, advanced manufacturing devices such as Gerotor gear sets and Geroler gear sets, covering a small footprint, high work efficiency, long operating life under extreme conditions, smooth and reliable operation, and the ability to provide high pressure and high torque. If you are confused about choosing the type of motor, HANJIU TECHNOLOGY can select the recommended suitable hydraulic motor for you.
HANJIU TECHNOLOGY adheres to the management belief of "taking science and technology as the reputation and developing by quality", and every manufacturing process and every hydraulic component reflects the principle of standard, professionalism and customer interests. Our company continues to develop new products, in order to continuously improve the performance of components, and strive to open up the market, with superior quality products, sound and complete service to meet user needs, relying on quality and service based on the hydraulic industry, wholeheartedly welcome new and old customers to negotiate business, and seek common development.
