Omr X 100cc Gerotor Hydraulic Motor 25mm Key Shaft End Ports
Price:
47 - 60 usd
MOQ:
100 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

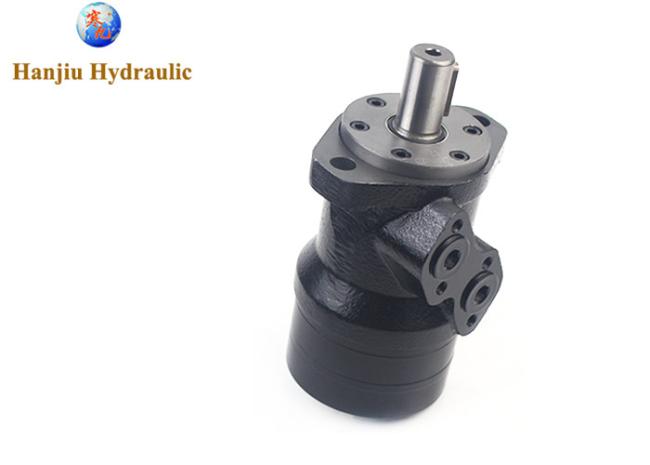

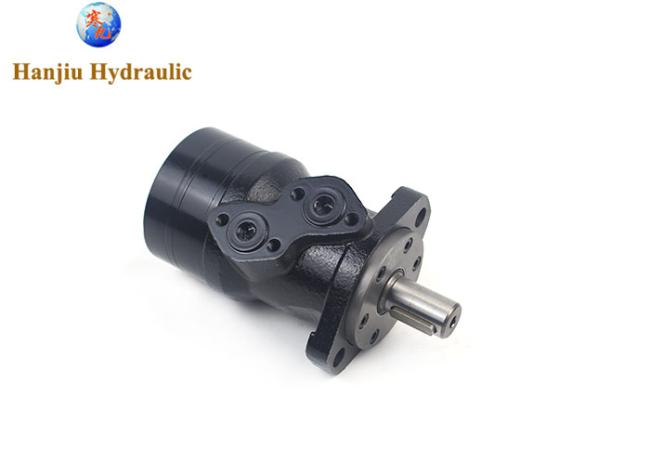

Hydraulic component Danfoss Hydraulic Gerotor Motor OMR X 100cc,25mm key shaft, end port
Description:

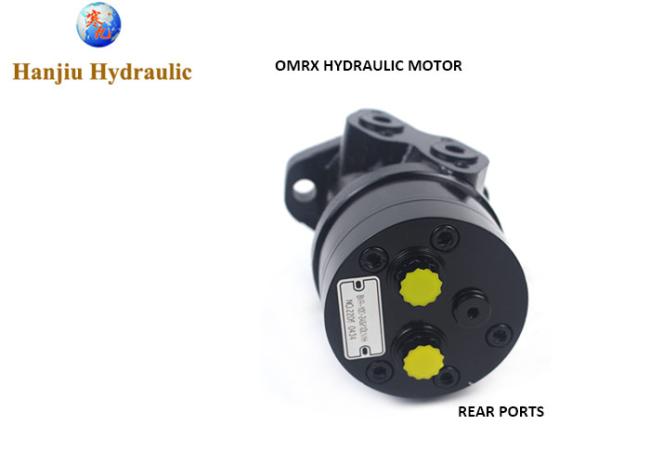

Hanjiu BMR100 = Danfoss OMRX100 Rear Port
Specifications:
| Type | BMR |
| Displacement | 100CC |
| Shaft | 25MM Cylindrical |
| Flange | A2 (2 Bolt 106.1 pcd) |
| Port Position | End |
| Shaft Seal | High Pressure |
| Drain | Yes |
Main specification
| Type | BMR 36 |
BMR 50 |
BMR 80 |
BMR 100 |
BMR 125 |
BMR 160 |
BMR 200 |
BMR 250 |
BMR 315 |
BMR 375 |
|
| displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. |
72 |
100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10 | 7.0 | 6.0 | 5 |
| int. | 9.8 | 11.2 | 15 | 15.0 | 14.5 | 14 | 13 | 9.5 | 9.0 | 8 | |
| Max. pressure drop (MPa) | cont. | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | |
Related products
11186674
11186645
11185562
11185490
11185588
11185499
11185611
11186164
11186190
11186155
83062990
83063060
11186198
83063102
83063743

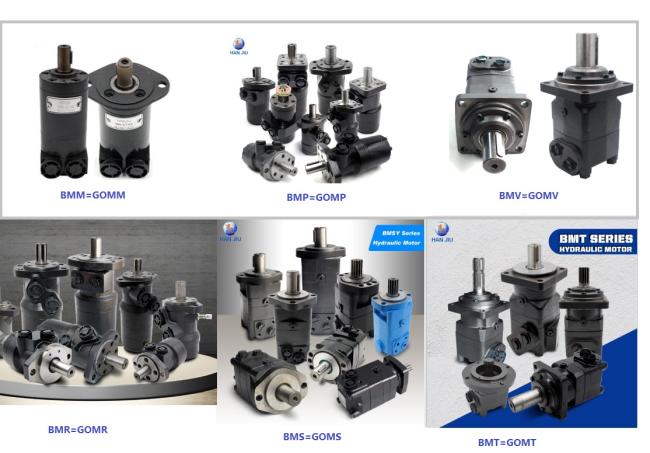

those types we all supply, our type is BMR/BMRS motors
we also supply other types, like OMM/OMP/OMH/OMS/OMT/OMV..
HANJIU is the engine of choice for wheel loaders, Pellenc grape harvesters, and John Deere combines and Merlo telehandlers. if you are in the aftermarket of these brand or the agricultural equipments, Hanjiu products are your best choice
Hanjiu technology policy is "quality first, service first, continuous improvement, continuous innovation, to meet customer needs", and the quality goal is "zero defect, zero complaint".
