High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description

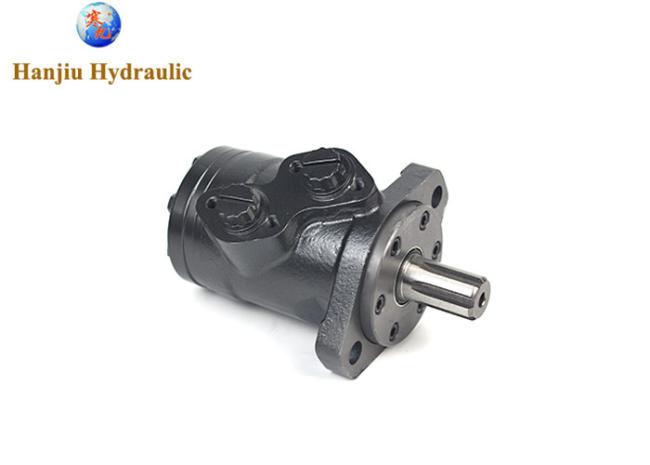

high torque Eaton XLH 016- Spool Valve Motors 2 bolts flange, 1" spline shaft
hydraulic motors specification as below
- Displacement: 36cc
- Flange A2 Ø82.55mm
- Shaft: SAE 6B,25.4mm, spline shaft
- Ports: G1/2
- Drain port:G1/4
Main specification
Specification:
| Type | BMP 36 |
BMP 50 |
BMP 80 |
BMP 100 |
BMP 125 |
BMP 160 |
BMP 200 |
BMP 250 |
BMP 315 |
BMP 400 |
BMP 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 |
|
HANJIU always guarantees fine quality, professional technology, reasonable price and fast delivery in the field of motors. Good profits are given to dealers, who are willing to serve the people of the world with the best attitude.
