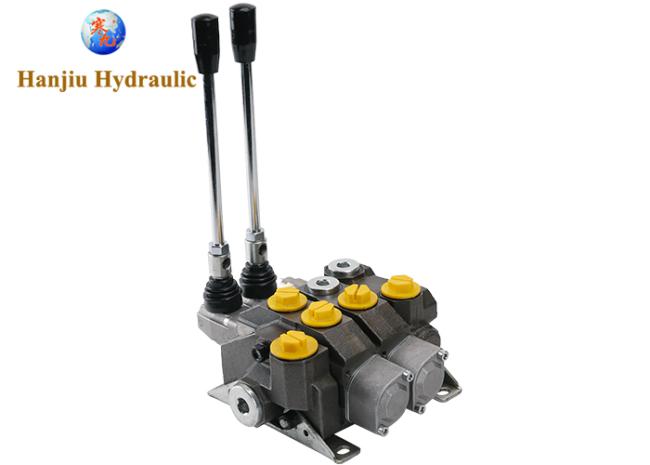

Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher HDS15 Sectional Valve replacement, 60 LPM 250BAR manual control
Quick View:
HSSD15 is a compatible option for Bucher HDS15 directional control valve, it have a wide successful experience in a wide range of different applications for agricultural, material handling and eath moving machine sectors. It has the same look, fit and functionality as the Bucher, OEM grade, more favorable price, fast delivery. If you are importers, distributors or OEM manufacturers, welcome contact us talk details.
Specification:
| SERIES | HDS15 |
| MAX FLOW LPM | 60 |
| MAX PUMP FLOW l/min | 60 |
| MAX WORKING PRESSURE bar | 320 |
| CONSTRUCTION | SYMMETRICAL |
| NUMBER OF SECTIONS | 1 TO 10 |
| SPOOL ACTUATION | MANUAL, MECHANICAL JOYSTICK, CABLE, PNEUMATIC, HYDRAULIC PILOT |
| SECTIONAL STYLE | YES |
| SECTIONAL LOAD CHECK VALVE | YES |
| SERVICE PORT RELIEF | YES |
General Specifications:
| Technical specification | Metering unit system | |
| Max flow rate | l/min U.S.G.P.M. |
60 15 |
| Max operating pres-sure | bar PSI |
320 4600 |
| Max back pressure | bar PSI |
30 400 |
| Oil temperature | °C °F |
-10 to +80 14 to 180 |
| Oil viscosity | °E cSt |
2.4 to 10 16 to 75 |
| Oil filtration | u | ≤30 |
More series available:
| Type | Number of sections | Nominal flow rate | Max. inlet pressure (P) | Max. work port press. (A/B) |
| l/min | bar | bar | ||
| HDS11 | 1-8 | 45 | 250 | 320 |
| HDS15 | 1-8 | 60 | 250 | 320 |
| HDS16 | 1-8 | 60 | 290 | 320 |
| HDS14 | 1-8 | 70 | 280 | 320 |
| HDS21 | 1-8 | 80 | 290 | 320 |
| HDS24 | 1-8 | 130 | 280 | 320 |
| HDS30 | 1-8 | 120 | 250 | 320 |
| HDS34 | 1-8 | 180 | 300 | 350 |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Bucher HDS11, HDS15, HDS16, HDS14, HDS21, HDS24, HDS30, HDS34 , LV-A1-95 and more. Below is a selection of our high-end compatible hydraulic directional control valves for Bucher dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
