20t / 25t / 30t Electric Chain Hoist Large Tonne For Single Speed
20t / 25t / 30t Electric Chain Hoist Large Tonne For Single Speed
SY-A ELECTRIC CHAIN HOIST WITH LARGE TONNE
SY Series Model SY-A Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||
| Power(kw) | Power Supply | Power(kw) | Power Supply | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 |
220-440V 50/60HZ 3Phase |
0.12 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 0.4 | 80-160 | ||
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 0.4 | 80-160 | ||
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 0.4 | 82-178 | ||
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 0.4 | 82-178 | ||
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 0.4 | 100-180 | ||
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 0.4 | 100-178 | ||
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 0.4 | 110-178 | ||
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 0.75 | 110-180 | ||
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 0.75 | 120-180 | ||
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 0.75 | 150-202 | ||
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 0.75*2 | 150-220 |
||

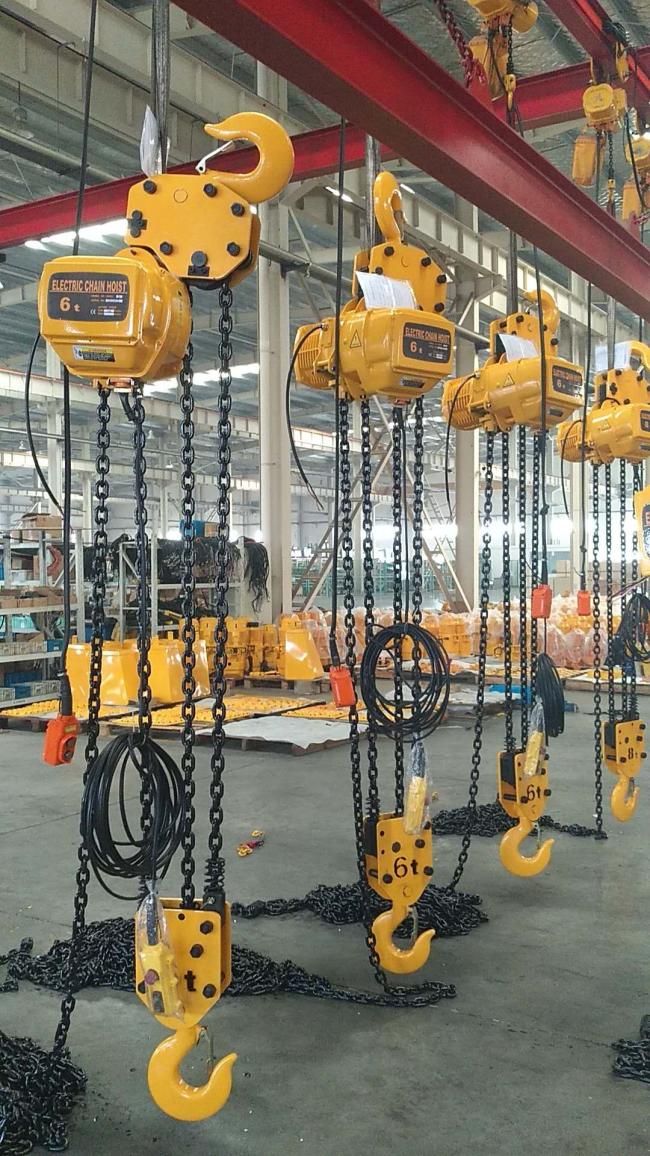

Product shows:
