1. Product Name:
QDT series Air Chain Hoist, QDT Series Pneumatic Chain Hoist
2. Usage Range:
Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields especially anti-explosion places. 100% work system to make the required conditions for high-efficient continuous jobs.
3. Features:
3.1. The main parts of it adopt high quality steel product to ensure durability.
3.2. Special specifications and marks can be made according to customers' requirements.
3.3. Various lifting capacity, meet different needs.
3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
3.5 Explosion-proof grade: Ⅰ Hazardous area, Including ⅡC, Group T5 and below.
4. Parameter:
|
Model |
Capacity t | Lifting height m | Motor power ps | Lifting speed with load m/min |
Lowering speed with load m/min |
Working pressure M Pa |
Air consumption M3/min | Load Chain Spec. |
Load Chain Weight kg/m | No. of chain falls | H mm | L mm |
| QDT 01 | 0.08 | 3 | 0.8 | 18 | 20 | ≥ 0.55 | 1 | 5*15 | 0.46 | 1 | 320 | 285 |
| QDT 02 | 0.125 | 16 | 18 | 1 | ||||||||
| QDT 03 | 0.25 | 14 | 16 | 2 | 395 | |||||||
| QDT 04 | 0.5 | 1 | 9 | 10 | 1.2 | 295 | ||||||
| QDT 05 | 1 | 1.2 | 5 | 6 | 1.5 | 6*18 | 0.79 | 460 | 350 | |||
| QDT 06 | 1.5 | 1.5 | 4.5 | 5 | 1.8 | 7*12 | 1.07 | 495 | 365 | |||
| QDT 07 | 2 | 4 | ||||||||||
| QDT 08 | 3 | 1.2 | 3 | 3.2 | 1.5 | 8*24 | 1.38 | 550 | 380 | |||
| QDT 09 | 5 | 1.4 | 1.6 | 10*28 | 2.2 | 840 | 415 | |||||
| QDT 10 | 6 | 1.2 | 1.3 | 880 | 420 | |||||||
| QDT 11 | 8 | 3.6 | 1.1 | 1.2 | 4 | 12*36 | 3.1 | 1000 | 530 | |||
| QDT 12 | 10 | 1 | 1.1 | 4.2 | 14*42 | 4.13 | 1050 | 570 | ||||
| QDT 13 | 12.5 | 0.9 | 1 | 1110 | 590 | |||||||
| QDT 14 | 15 | 0.8 | 0.9 | 18*54 | 6.85 | 1480 | ||||||
| QDT 15 | 20 | 830 | ||||||||||
| QDT 16 | 25 | 0.7 | 0.8 | 14*42 | 4.13 | 4 | 1280 | 740 | ||||
| QDT 17 | 30 | 22*66 | 10.2 | 1660 | 990 | |||||||
| QDT 18 | 40 | 0.5 | 0.6 | 18*54 | 6.85 | 765 | ||||||
| QDT 19 | 50 | 0.4 | 0.5 | 22*66 | 10.2 | 1890 | 1185 | |||||
| QDT 20 | 60 | 0.35 | 0.45 | 1980 | 1190 | |||||||
| QDT 21 | 80 | 5.8 | 0.28 | 0.32 | 7.5 | 26*78 | 14.87 | 2610 | 1350 | |||
| QDT 22 | 100 | 0.25 | 0.3 | 30*90 | 19.6 | 3400 | 1540 | |||||
| QDT 23 | 120 | 0.2 | 0.25 | 32*96 | 22.29 | 4450 | 1700 | |||||
| QDT 24 | 160 | 36*108 | 31 | 5800 | 1890 |

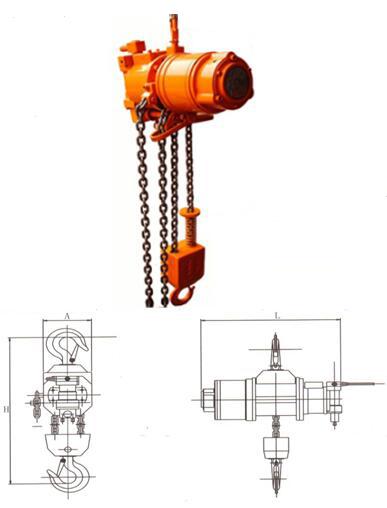

5. Product Photo:
6. Company Message:
OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
