10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
Price:
650 usd
MOQ:
1 set
Delivery Time:
15 to 20 working days
Brand:
JCYC
Product Description
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
Complete single girder end carriage assembly with integrated motor system designed for overhead crane applications.
Selection Guide
Capacity-Based Wheel Selection
- Below 3 tons: LD150 wheels or LD200 wheels
- 3–10 tons: LD300 wheels
Runway Type Wheel Selection
- I-beams (14#, 16#, 18#, 20#): LD150 wheels with wheel groove width 110/130 mm
- Rail steel (12#, 15#, 18#): LD200 wheels with wheel groove width 60 mm
Example: 5-Ton Crane with 6m Lifting Height
For capacities above 3 tons, LD300 wheels are recommended.
End Carriage Set Components
- 2 × end carriages
- 4 × wheels
- 2 × motors
- 2 × gearboxes
- 4 × buffer blocks
End Carriage Length Selection
- Span ≤ 5 m: 1.2 m end carriage
- Span 5–7.5 m: 1.5 m end carriage
- Span 7.5–12 m: 2.0 m end carriage
Key Features & Advantages
- High-quality materials: Premium steel construction for strong structure and long service life
- High-performance bearings: Smooth operation with low noise and reduced wear
- Quality assurance: Box-type steel plate beam design, resistant to deformation
- Carburized gears: Large starting torque, stable and smooth running speed
- Copper-winding motor: Smooth start-up, strong power output, long service life
- Customizable: End carriage solutions tailored to customer requirements
Technical Specifications

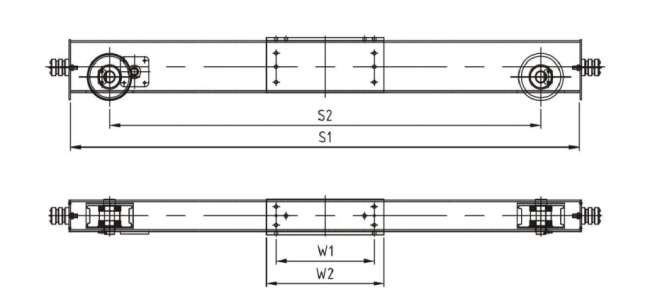

| Model | Crane | Rectangular | Wheel Size | Motor power | S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
||||||
| GL125-15 | 1t-7.5m | 150*150*6 | W125*60 | 0.3KW*2 | 1500 | 1300 | 400 | 500 | ||||||
| GL125-20 | 1t-11.5m | 150*150*6 | W125*60 | 0.3KW*2 | 2000 | 1800 | 400 | 500 | ||||||
| GL125-25 | 1t-16.5m | 150*150*6 | W125*60 | 0.3KW*2 | 2500 | 2300 | 400 | 500 | ||||||
| GL160-15 | 2t/3t-7.5m | 150*200*8 | W160*70 | 0.4KW*2 | 1500 | 1200 | 400 | 500 | ||||||
| GL160-20 | 2t/3t-11.5m | 150*200*8 | W160*70 | 0.4KW*2 | 2000 | 1700 | 400 | 500 | ||||||
| GL160-25 | 2t/3t-16.5m | 150*200*8 | W160*70 | 0.4KW*2 | 2500 | 2200 | 400 | 500 | ||||||
| GL160-30 | 2t/3t-22.5m | 150*200*8 | W160*70 | 0.4KW*2 | 3000 | 2700 | 500 | 600 | ||||||
| GL160-35 | 2t/3t-28.5m | 150*200*8 | W160*70 | 0.4KW*2 | 3500 | 3200 | 600 | 700 | ||||||
| GL200-20 | 5t-11.5m | 150*250*8 | W200*70 | 0.4KW*2 | 2000 | 1700 | 400 | 500 | ||||||
| GL200-25 | 5t-16.5m | 150*250*8 | W200*70 | 0.4KW*2 | 2500 | 2200 | 400 | 500 | ||||||
| GL200-30 | 5t-22.5m | 150*250*8 | W200*70 | 0.75KW*2 | 3000 | 2700 | 500 | 600 | ||||||
| GL200-35 | 5t-28.5m | 150*250*8 | W200*70 | 0.75KW*2 | 3500 | 3200 | 600 | 700 | ||||||
| GL250-20 | 10t-11.5m | 200*250*8 | W250*80 | 0.75KW*2 | 2000 | 1600 | 400 | 500 | ||||||
| GL250-25A | 10t-16.5m | 200*250*8 | W250*80 | 0.75KW*2 | 2500 | 2100 | 500 | 600 | ||||||
| GL250-30A | 10t-22.5m | 200*250*8 | W250*80 | 1.1KW*2 | 3000 | 2600 | 500 | 600 | ||||||
| GL250-35A | 10t-28.5m | 200*250*8 | W250*80 | 1.1KW*2 | 3500 | 3100 | 700 | 800 | ||||||
| GL250-25B | 16t-16.5m | 200*300*8 | W250*80 | 1.1KW*2 | 2500 | 2100 | 600 | 700 | ||||||
| GL250-30B | 16t-22.5m | 200*300*8 | W250*80 | 1.1KW*2 | 3000 | 2600 | 700 | 800 | ||||||
| GL250-35B | 16t-28.5m | 200*300*8 | W250*80 | 1.5KW*2 | 3500 | 3100 | 700 | 800 | ||||||
| GL315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 | 3000 | 2500 | 700 | 800 | ||||||
| GL315-35 | 20t-22.5m | 200*400*8 | W315*90 | 1.5KW*2 | 3500 | 3000 | 700 | 800 | ||||||
