High Grade Heavy Load Stable Crane Railway Steel To Overhead Cranes

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 15 to 20 working days

Brand: JCYC

Product Description

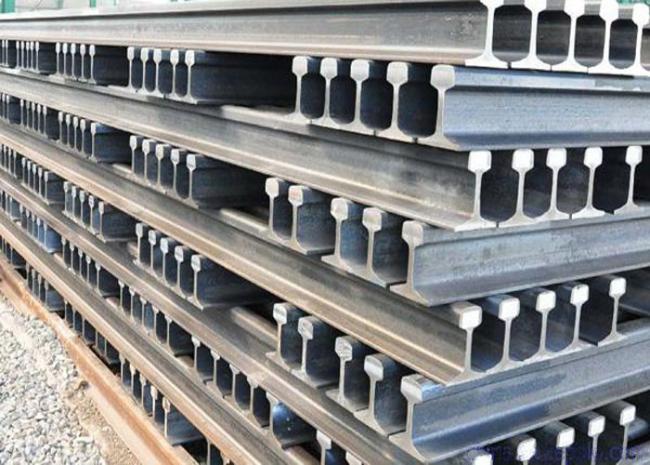

High Grade Heavy Load Stable Crane Railway Steel To Overhead Cranes

Our steel has good quality and good price. We can free provide technical guide and techincal drawing for rails installation. The rails we can provide as following:

Model	Height(mm)	Bottom(mm)	Head(mm)	Web(mm)	Length per piece(m)	Material
8kg/m	65	54	25	7	6	Q235
15kg/m	79.37	79.37	42.86	8.33	6-10	Q235/55Q
18kg/m	90	80	40	10	6-10	Q235/55Q
24kg/m	107	92	51	10.8	6-10	Q235/55Q
30kg/m	107.95	107.95	60.33	12.3	6-10	Q235/55Q
38kg/m	134	114	68	13	12.5	45MN/U71MN
43kg/m	140	114	70	14.5	12.5	45MN/U71MN
50kg/m	152	132	70	15.5	12.5	45MN/U71MN
60kg/m	176	150	73	16.5	12.5	U71MN
QU70	120	120	70	28	12-12.5	U71MN
QU80	130	130	80	32	12-12.5	U71MN
QU100	100	150	100	38	12-12.5	U71MN
QU120	170	170	120	44	12-12.5	U71MN

Advantages:

Chinese standard: GB2585— 81;
Good quality with competitive price;
Rich supply experience in recommend type, package, delivery and sea transportation;
Free provide techincal guide for rail installation ;
