Yellow Color Explosion Proof Chain Hoist 1t-35t Alloy Steel Normal
1. Product Profile:
EP, SY-CP Model Explosion-proof Electric Chain Hoist. It completely solved sparkers problem and widely used in special industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is three phase AC 380 V 50 Hz, customization is ok.
2. Description:
2.1. Grade: Ex d II B T4 Gb. Insulation of motor: F Class.
2.2. High quality and wide adaptation.
2.3. Excellent performance.
2.4. 1 year warranty
2.5. Sample, OEM and ODM are all ok.
3. Advantages:
3.1. The main parts of it adopt high quality steel product to ensure durability.
3.2. Special specifications and marks can be made according to customers' requirements.
3.3. Adapts to environment that has explosive gas formed by inflammable gas, steam and sir, etc
3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
3.5 Explosion-proof electric chain hoist.
4. Parameter:
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||
| EP1 | 1 | 6.8 | 10/20 | 1.5 | 1440 | 220-440V 50/60HZ 3Phase | 0.4 | 1440 | 220-440V 50/60HZ 3Phase | 80-160 |
| EP2-1 | 2 | 6.8 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| EP2-2 | 2 | 3.4 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| EP3-1 | 3 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| EP3-2 | 3 | 3.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| EP5-2 | 5 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| EP10-4 | 10 | 2.8 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| EP15-6 | 15 | 1.9 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| EP20-8 | 20 | 1.4 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| EP25-10 | 25 | 1.1 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| EP30-12 | 30 | 0.9 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| EP35-16 | 35 | 0.7 | 10/20 | 3.0*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||

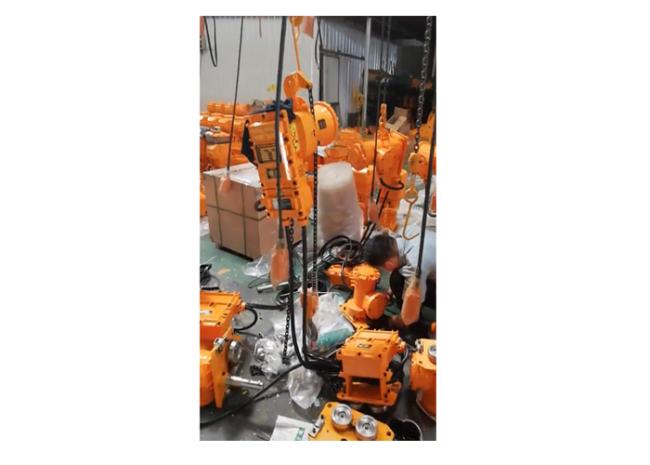

5. Photo:
6. Company Message:
OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
