50 / 60HZ 0.3t to 35t Electric Chain Hoist with Fast Lifting Speed
50 / 60HZ 0.3t to 35t Electric Chain Hoist with Fast Lifting Speed
Usage:
We supply various famous brands hoist with low price and professional service. This chain hoist is designed for heavy duty industrial applications, primarily for maintenance and construction activities. It greatly reduce down-time and operational costs.Normal usage is for lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Parameter:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||
| Power(kw) | Power Supply | Power(kw) | Power Supply | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 220-440V 50/60HZ 3Phase | 0.12 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 0.4 | 80-160 | ||
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 0.4 | 80-160 | ||
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 0.4 | 82-178 | ||
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 0.4 | 82-178 | ||
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 0.4 | 100-180 | ||
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 0.4 | 100-178 | ||
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 0.4 | 110-178 | ||
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 0.75 | 110-180 | ||
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 0.75 | 120-180 | ||
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 0.75 | 150-202 | ||
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 0.75*2 | 150-220 | ||

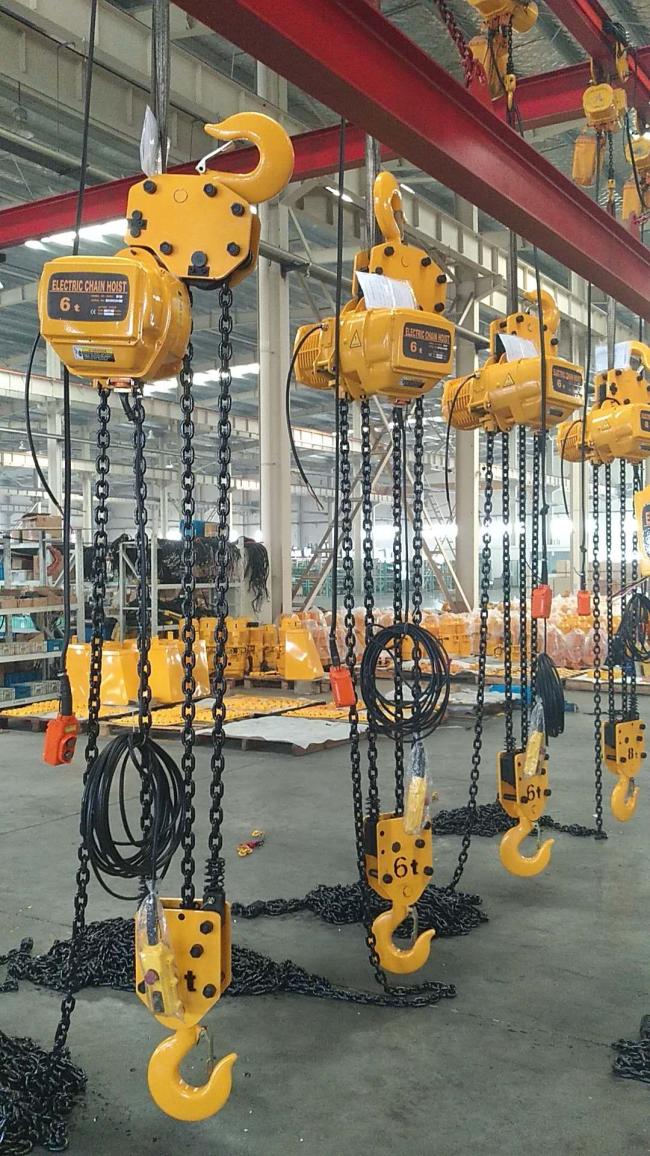

Photo:
