Mini Electric Wire Rope Hoist 250kg Capacity 240v 50hz With Pivot Arm
Mini Electric Wire Rope Hoist 250kg Capacity 240v 50hz With Pivot Arm
Product Description
1. Mini electric hoist capacity ranges from100kgs-1200kgs
2. Mini electric hoist usage small, convenient hoist for lifting often used for home, mall, construction, warehouse, workshop, harbors, airport and so on.
3. PA mini electric hoist with 100% pure copper motor, good cooling and durable and more energy efficient.
4. Mini electric wire rope hoist handle with emergency button.
5. Mini electric steel cable hoist with upper limit.

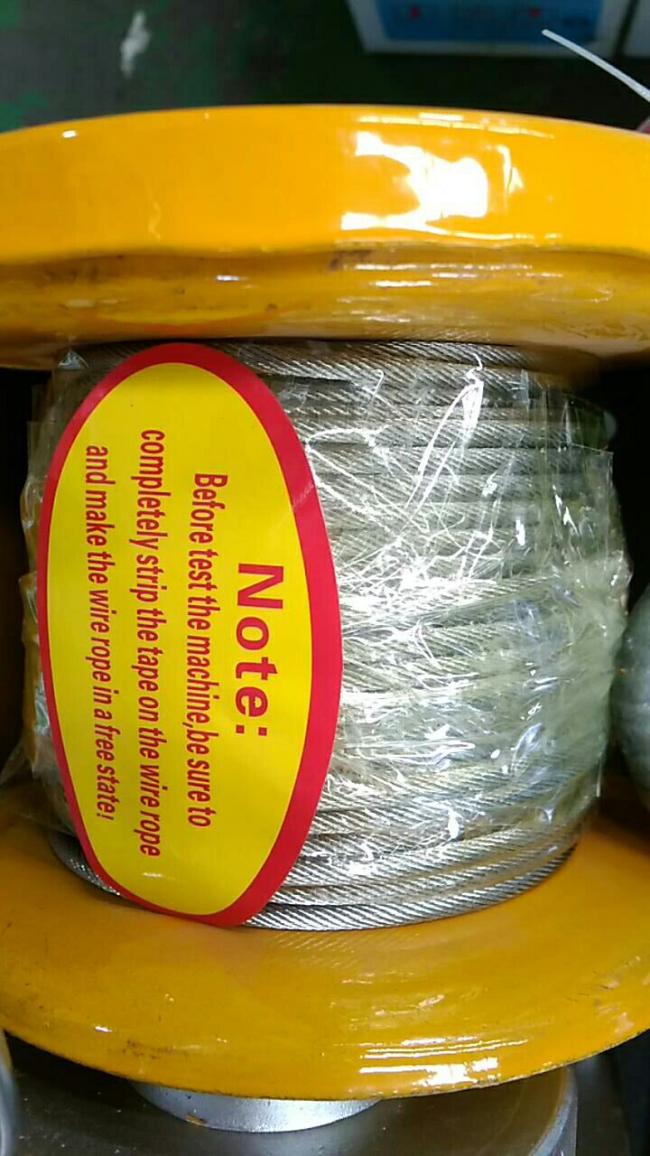

6. The wire rope of mini electric hoist use anti-rotary wire rope.
7. Mini electric hoist with longer stator and rotor.
8. Thicken A4 shell to protect the mini electric hoist.
9. CE certificate available.mini electric hoist
Product parameters
| Model | Method of Use | Rated Volt (v) |
Input Power (w) |
Rated Capacity (kg) |
Lifting Speed (m/min) |
Lifting Height (m) |
Qty/CTN PCS |
Packing Size (cm) |
G.W/N.W (kg) |
| PA200A | Single-Hook | AC 220/230V 50/60Hz |
480 | 100 | 10 | 12 | 2 | 38×32×25 | 22.5/22 |
| Double-Hook | 200 | 5 | 6 | ||||||
| PA250A | Single-Hook | 510 | 125 | 10 | 12 | 23/22 | |||
| Double-Hook | 250 | 5 | 6 | ||||||
| PA300A | Single-Hook | 600 | 150 | 10 | 12 | 23.5/23 | |||
| Double-Hook | 300 | 5 | 6 | ||||||
| PA400A | Single-Hook | 950 | 200 | 10 | 12 | 45×34×27 | 33/32 | ||
| Double-Hook | 400 | 5 | 6 | ||||||
| PA500A | Single-Hook | 1020 | 250 | 10 | 12 | 33.5/32.5 | |||
| Double-Hook | 500 | 5 | 6 | ||||||
| PA600A | Single-Hook | 1200 | 300 | 10 | 12 | 35/34 | |||
| Double-Hook | 600 | 5 | 6 | ||||||
| PA800A | Single-Hook | 1300 | 400 | 8 | 12 | 38/37 | |||
| Double-Hook | 800 | 4 | 6 | ||||||
| PA1000A | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 54×25×32 | 32/31 | |
| Double-Hook | 1000 | 4 | 6 |
Advantages
1.Adopt urgent stop switch and reinforced breaking switch.With upper position limit.
2.Protection class up to IP54.
3.With thermal prevention device.
4.Approved by CE standard.

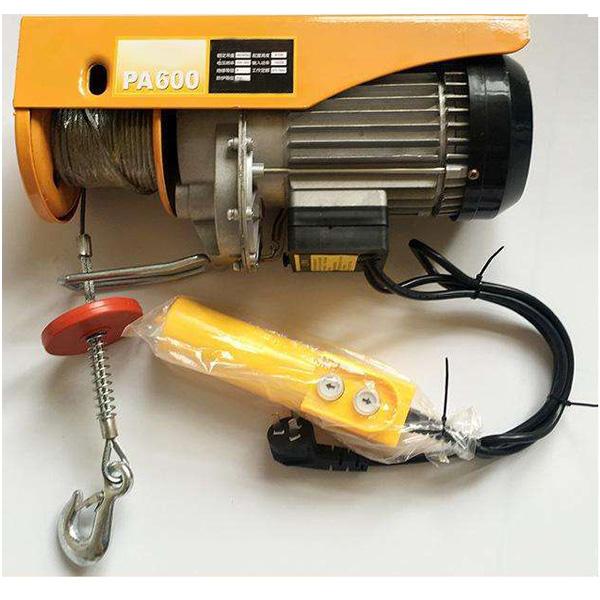

Product Photos Show
