M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist 6m to 18m Lifting Height

Name: M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist 6m to 18m Lifting Height
Brand: Chongqing Shanyan Crane Machinery Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: Around 12 workdays if no store

Brand: JCYC

Product Description

M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material Handling

Product Description:
M5 Level 6m to 18m Lifting Height 50t Heavy Load Double Girder Electric Wire Rope Hoist for Material Handling

Porduct Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Technical Parameters:

Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Lifting Motor(kw)	Travelling Speed(m/min)	Travelling Motor(kw)	Lifting System(FEM/ISO)		Travelling System(FEM/ISO)		Trolley Rail Gauge(mm)
3.2	6/9/12/15/18	5/0.8	3.2/0.42	5/20	0.25*2	2M	M5	2M	M5	1000-1700
5	6/9/12/15/18	5/0.8	6.1/1	5/20	0.37*2	2M	M5	2M	M5	1000-1700
6.3	6/9/12/15/18	5/0.8	6.1/1	5/20	0.37*2	2M	M5	2M	M5	1000-1700
8	6/9/12/15/18	5/0.8	9.5/1.5	5/20	0.37*2	2M	M5	2M	M5	1000-2000
10	6/9/12/15/18	5/0.8	9.5/1.5	5/20	0.37*2	2M	M5	2M	M5	1000-2000
12.5	6/9/12/15/18	5/0.8	12.5/2	5/20	0.55*2	1AM	M4	2M	M5	1000-2000
16	6/9/12/15/18	4/0.6	16/2.6	5/20	0.55*2	2M	M5	2M	M5	1400-2400
20	6/9/12/15/18	4/0.6	16/2.6	5/20	0.55*2	1AM	M4	2M	M5	1400-2400
25	6/9/12/15/18	3.3/0.8	20/5	5/20	0.75*2	3M	M6	2M	M5	1700-3100
32	6/9/12/15/18	3.3/0.8	20/5	5/20	1.1*2	2M	M5	2M	M5	1700-3100
40	6/9/12/15/18	0-4	38	5/20	1.5*2	1AM	M4	2M	M5	1700-3100
50	6/9/12/15/18	0-3	38	5/20	1.5*2	2M	M5	2M	M5	1700-3100
50	6/9/12/15/18	0-3	38	5/20	1.5*2	2M	M5	2M	M5	2000-4200

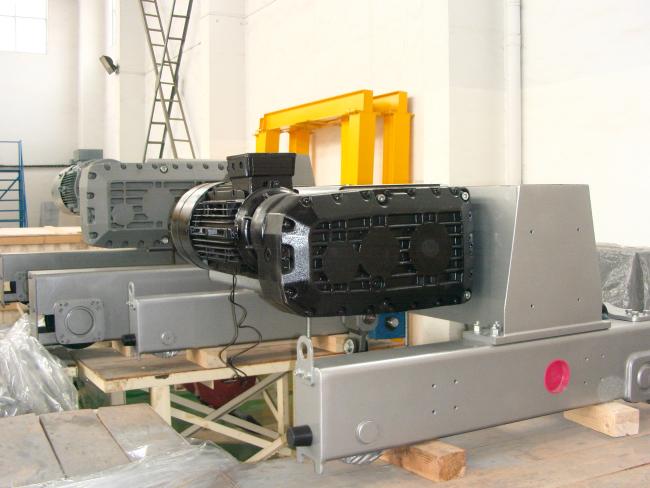

Photo:

Warm Tips:

Warm tips Before Make A Order

We need your confirmation about below informations:

1. Trade term, for example, EXW, FOB or CIF?
2. Quantity
3. Loading capacity
4. Lifting height
5. Working voltage
6. Working environment
7. Safety voltage
8. Working duty
9. Customization is acceptable

10. OEM, ODM, sample, trial and mixed orders are all ok.
