Product Description
2ton to 20ton European Type Single Girder Electric Wire Rope Hoist With Single Speed Or Double Speeds
Product Usage:
Can be used in heavy duty industry, light duty industry, the concrete plant, coal mining industry, cement and hydro power industry, etc.
Product Details:
SH – Type Under – Electric Wire Rope Hoist
It is a up to date developed product by combining and applying the standard German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Features and Advantages:
1. Low noise, safe and reliable traveling.
2. Single speed, double speed or variable speed if client request.
3. Smooth starting and stopping.
4. Light wheel pressure.
5. Convenient maintenance.
6. Corrosion resistance and fatigue resistance.
7. Overload protection device.
Competitive Advantages -- Higher Security and Reliability:
1. Brake and overload protection ensure the safety under any circumstance, no slip under load
2. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low-voltage protection ensures the safe and reliable operation.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.
| Capacity (t) |
Lifting Height (m) |
Lifting Speed (m/min) |
Lifting Motor (kw) |
Travelling Speed (m/min) |
TravellingMotor (kw) |
Lifting System (FEM/ISO) |
Travelling System (FEM/ISO) |
I-Beam Width (mm) |
||
| 2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 150-300 |
| 3.2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 150-300 |
| 5 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 200-350 |
| 6.3 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1Am | M4 | 2M | M5 | 200-350 |
| 8 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M | M6 | 2M | M5 | 200-410 |
| 10 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5 | 6/9/12/15/18 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
| 16 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75*2 | 2M | M5 | 2M | M5 | 300-450 |
| 20 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75*2 | 1Am | M4 | 2M | M5 | 300-450 |
| 8 | 20/24/28/32/36 | 8/1.3 | 12.5/2 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 10 | 20/24/28/32/36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5 | 20/24/28/32/36 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |

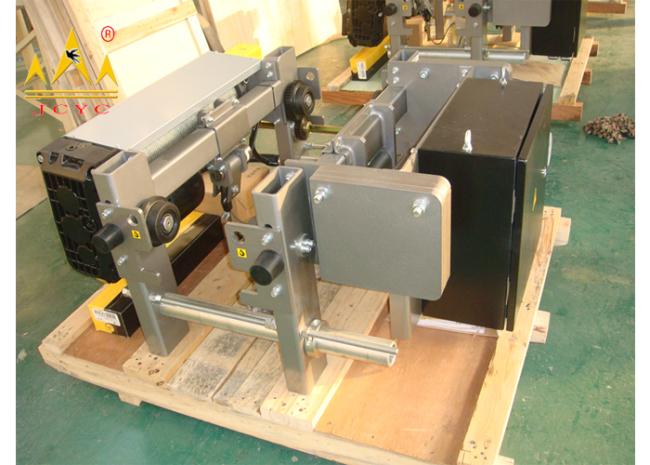

Photo:
Warm Tips:
| Warm tips Before Make A Order | We need your confirmation about below information: |
|
1. Trade term, for example, EXW, FOB or CIF? 10. OEM, ODM, sample, trial and mixed orders are all ok. |
