China 2/1 Reeving 8000kg Electric Wire Rope Hoist Trolley Type for sale

2/1 Reeving 8000kg Electric Wire Rope Hoist Trolley Type

Price Negotiable
Price: USD negotiate per unit
MOQ: 1 unit
Delivery Time: 10 -15 working days
Brand: JCYC
Product Description

8000kg Electric Wire Rope Hoist with Certification





Product Introduction



SH type electric wire rope electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards and other regulations. The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the wire rope electric hoist is 1 to 80 tons and the working class is M5 and M6. Customized European wire rope electric hoist are available. And the main parameters are presented for your reference



The electric hoists are widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Questions before making quotation



The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?







Capacity Lifting Height Lifting Speed Lifting Power Travelling Speed Travelling Power Working Group Traveling H C I-beam Weight
(kg) m (m/min) KW m/min (kw) FEM/ISO Working Group (mm) (mm) B(mm) kg
              FEM/ISO
2000 6 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 309
9 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 330
12 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 351
15 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 372
18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 393
3200 6 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 309
9 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 330
12 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 351
15 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 372
18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 393
5000 6 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 380
9 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 423
12 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 466
15 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 510
18 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 552
6300 6 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 150-300 380
9 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 150-300 420
12 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 200-350 465
15 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 260 596 200-350 510
18 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 260 596 200-350 552
8000 6 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 794
9 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 826
12 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 870
15 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 914
18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 958
10000 6 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 794
9 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 826
12 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 870
15 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 914
18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 958
12500 6 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 794
9 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 826
12 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 870
15 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 914
18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 958
16000 6 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1120
9 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1180
12 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1240
15 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1300
18 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1450
20000 6 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1120
9 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1180
12 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1240
15 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1300
18 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1450
8000 20 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 997
24 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1036
28 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1075
32 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1114
36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1153
10000 20 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 997
24 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1036
28 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1075
32 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1114
36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1153
12500 20 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 997
24 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1036
28 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1075
32 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1114
36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1153

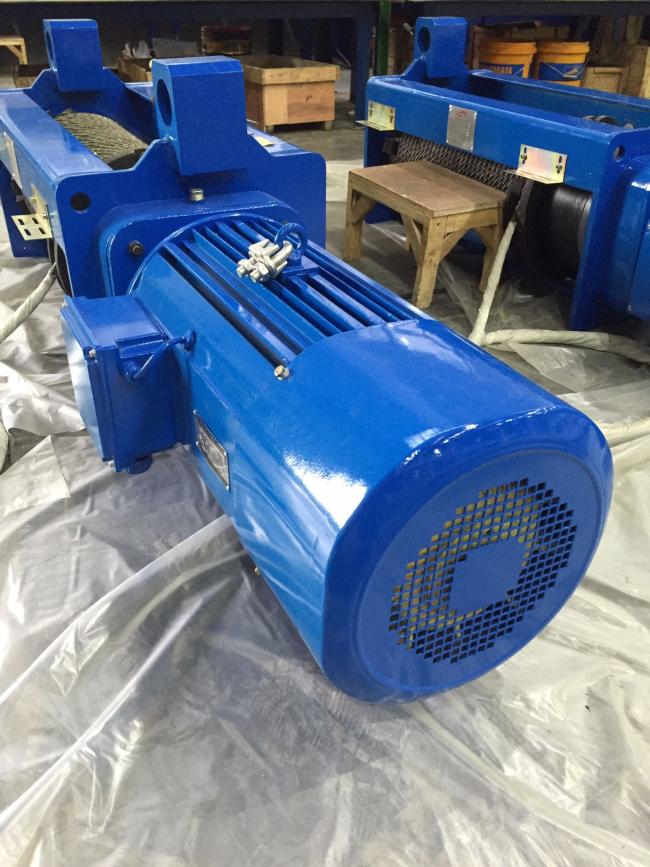

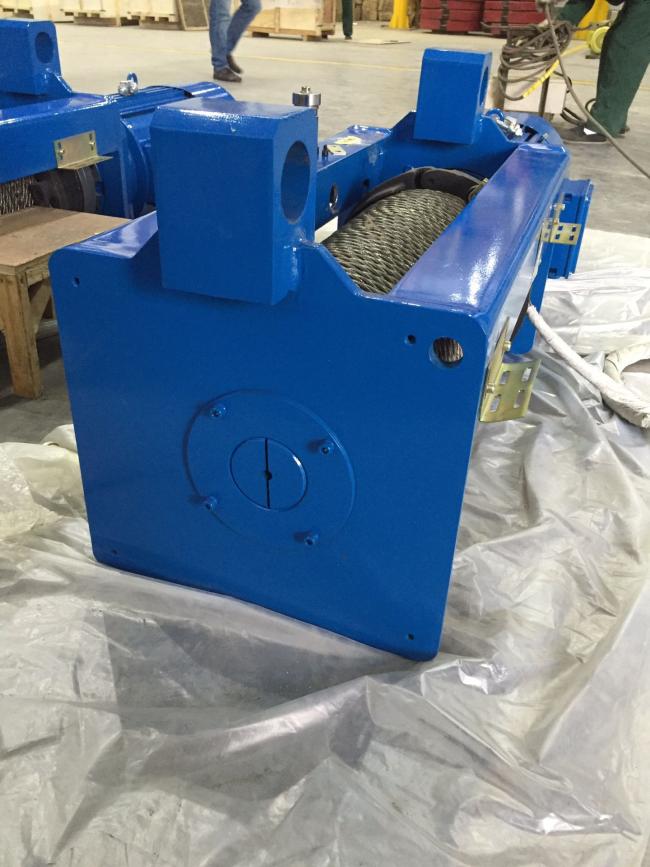

Product show :
