Single Girder Electric Wire Rope Hoist 20T 20m/Min Traveling
European Model Single Girder Electric Wire Rope Hoist with ABM SEW Motor
SHSL-A Model, Low Headroom Electric Wire Rope Hoist
Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
For European style electric wire rope hoist, it has many unique advantages. Based on bringing in and assimilating foreign advanced technology, this type of crane takes modular design theories as guidance, uses modern computer technology as means, introduces optimized and reliable design methods, which is new type of crane made by employing import configuration, new material and technology has features in light-weight, generalizing, energy-conservation and environmental protection, maintenance free and high technology content.

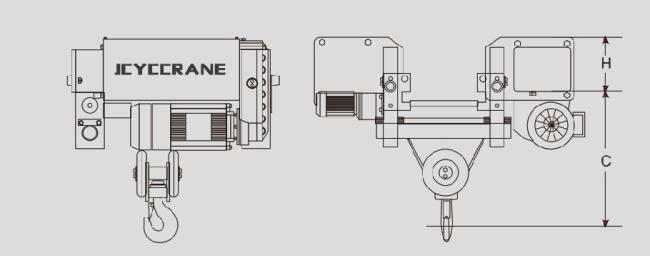

| Capacity(kg) | FEM | ISO | Height(m) | Speed(m/min) | Trolley Speed(m/min) | H Size(mm) | C Size(mm) | |
|---|---|---|---|---|---|---|---|---|
| 1000 | 4m | M7 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1250 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1600 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 1600 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 2000 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 2000 | 3m | M6 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 2500 | 3m | M6 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 2500 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 3200 | 2m | M5 | 6/9/12 | 0.8/5.0 | 5~20 | 232 | 500 | |
| 3200 | 1Am | M4 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 660 | |
| 5000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 590 | |
| 5000 | 2m | M5 | 6/9/12/18 | 1.6/10.0 | 5~20 | 254 | 790 | |
| 6300 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 590 | |
| 8000 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 254 | 740 | |
| 10000 | 2m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 | |
| 10000 | 3m | M4 | 6/9/12/18 | 0.6/4.0 | 5~20 | 364 | 850 | |
| 12500 | 1Am | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 321 | 740 | |
| 12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
| 16000 | 2m | M4 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
| 20000 | 1Am | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 404 | 850 | |
