Water Cooling DEUTZ Diesel Generator Set 50KW 63KVA 380V - 415V AC Three Phase
| Deutz Engine: | BF4M2012 | Stamford Alternator: | UCI224E |
| Prime Power: | 50KW / 63KVA | Standby Power: | 55KW / 69KVA |
| Output Type: | AC Three Phase | Frequency: | 50HZ/1500rpm |
| Cooling Method: | Water | Control System: | Deep Sea 6020 |
| Exciter: | Brushless | Fuel Consumption (l/hr)100% Load: | 3 Pole MCCB |
| Color: | White, Yellow, Blue, Red Etc. For Your Choose | Test: | Debugging Before Shipment |
| Brand: | TOPOWER |
Advantages of Diesel Generator Set Powered by Deutz Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Standard Configuration of Diesel Generator Set Powered by Deutz Engine:
1) Deutz engine
2) Stamford alternator(Marathon, Mecc Alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Output Ratings
|
Gensets Model |
Prime Power | Standby Power | ||
| kW | kVA | kW | kVA | |
| SD63E5 | 50 | 63 | 55 | 69 |
| Voltage | 380V-415V | 220V-240V | 190V-208V |
| Amps | 87-95 | 150-164 | 173-190 |
Ratings and Performance Data
| Engine Brand | Deutz | |
| Engine Model | BF4M2012 | |
| Alternator Brand | Stamford | |
| Alternator Model | UCI224E | |
| Control System | DSE6020 / DSE7320 | |
|
Standard Noise Level@7m |
68db | |
| Circuit Breaker Type | 3 Pole MCCB | |
| Frequency & Phase | 50Hz & 3PH | |
| Engine Speed: RPM | 1500 | |
| Fuel Tank Capacity: L | Open | 138 |
| Soundproof | ||
| Fuel Consumption (l/hr) | 110% Load | / |
| 100% Load | 18.9 | |
| 75% Load | 13.9 | |
| 50% Load | 9.5 | |
| Lubricant | 15W40 | |
| Total Lubricant Capacity (L) | 7.9 | |

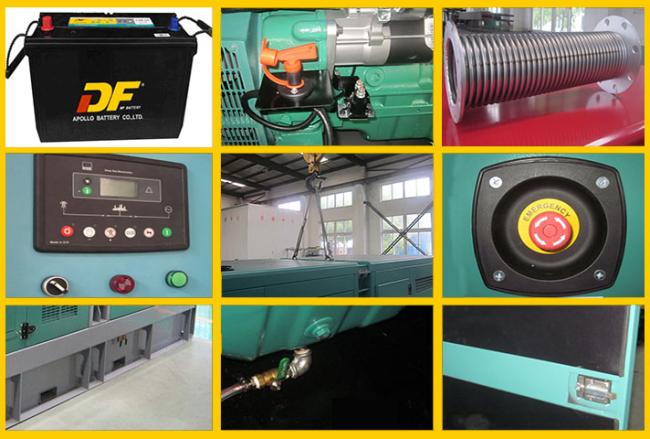

The Details of SILENT type 50hz diesel generator:
