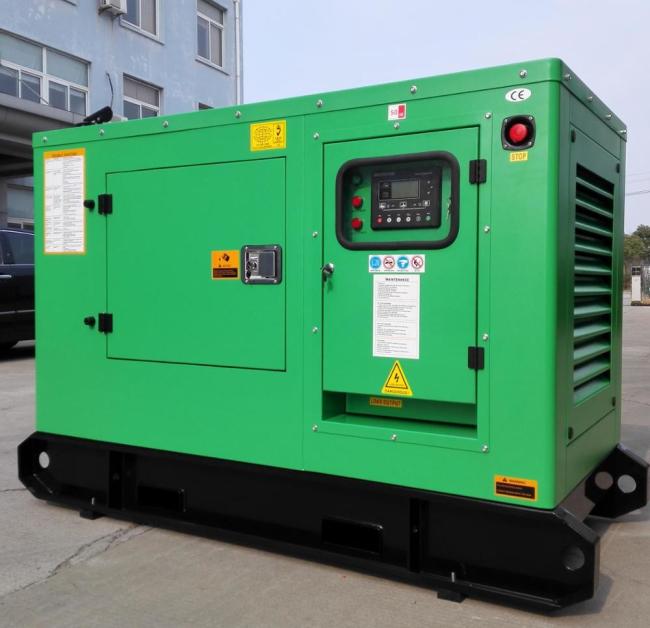

Safe Emergency Standby Generator 20KW 25KVA With High Water Temperature Protection

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: Negotiable

Brand: STONE POWER

Product Description

Diesel standby generator 20KW/25KVA Ricardo Silent type engine model 495D

MODEL OF GEN-SET		SR25M5
Prime power of gen-set		20KW/25KVA
Standby power of gen-set		22KW/27.5KVA
DIESEL ENGINE	Model	Ricardo 495D
	Type	Water-cooled, four stroke, in-line, direct injection
	No.of cyliner	4
	Bore X Stroke (mm)	95x115
	Ttl. Displacement (L)	3.26
	Compression ratio	19:1
	Induction system	natural aspired
	Rated output (KW)	26.5KW
	Rated speed (rpm)	1500
	Fuel consumption (g/kw.h)	≤251.6
	Cooling method	water-cooled with radiator
	Starting method	DC 12V electric start
ALTERNATOR	Model	WHI 184F
	Rated power	20KW/25KVA
	Rated voltage	380/220V
	Rated frequency	50HZ
	Rated speed (rpm)	1500
	Power factor	0.8
	Phase connection	three phase
	Winding connection	4 -wire connected
	Excitation method	Brushless
	Insulation class	H
	Voltage regulation	AVR
CONTROL PANEL		A/V/Hz meters, air breaker, transfer switch, temp.and pressure gauges, indicating lamp, hour meter, key starter, etc.
EMERGENCY STOP SYSTEM		Low oil pressure, high water temperature, Over-speed and over load, etc.;
NOISE LEVEL		72dB @ 7 meters
NET WET (kg / Silent type)		960
PACKING SIZE (mm / Silent type)		2100x960x1100
