12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes
Product discribtion:
12cores MPO Male - LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end.
12F MPO- LC/SC/FC/ST Fanout 0.9mm Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MPO adapter panel and MPO trunk.
MPO Connector’s Details:
| Connector | Fiber Channel |
 |
 |
| MPO Male Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
| Connector | Reference | Housing Details |
| MPO Single Mode | IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other connectors’ Industrial Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
E2000: IEC61754-15
Available for
G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
MPO-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
|
Insertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
|
Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | ||
| ROC-Y(ABS) | 50mm | |||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
LC/SC/FC/ST End-Face Geometry 3D Interference Index
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | ------ | 8°± 0.5° | |
LC/SC/FC/ST End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
LC/SC/FC/ST End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Features:
- 100% pre-terminated and tested in factory to ensure transfer performance.
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Application:
- Data communication network.
- Optical System Access network.
- Storage area networking fiber channel.
- High density architectures.

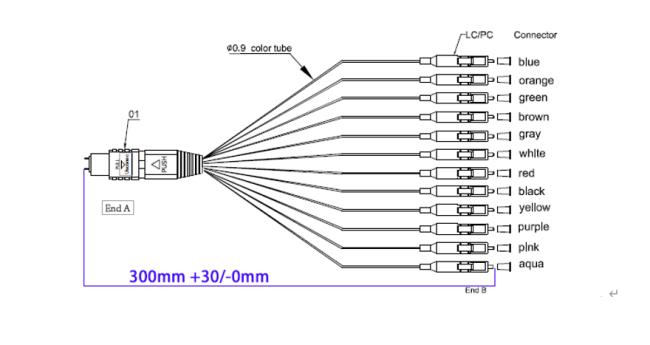

Cable Drawing:
