2 IN 2 OUT IP68 FTTH Fiber Optic Splice Closure FOSC Splice Closures
2 IN 2 OUT IP68 FTTH Fiber Optic Splice Closure FOSC Splice Closures

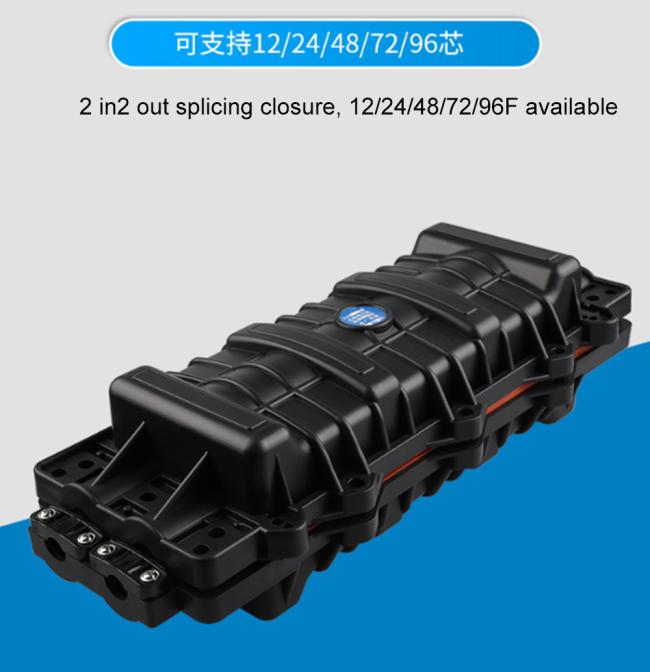

2 IN 2 OUT IP68 FTTH Underground H015 Optical Fiber Joint FOSC Splice Closures Horisontal Type
Horizontal type fiber closure has a flat or cylindrical outer housing to provide space and protection for fiber optic splices. It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-288Fibers Totally.

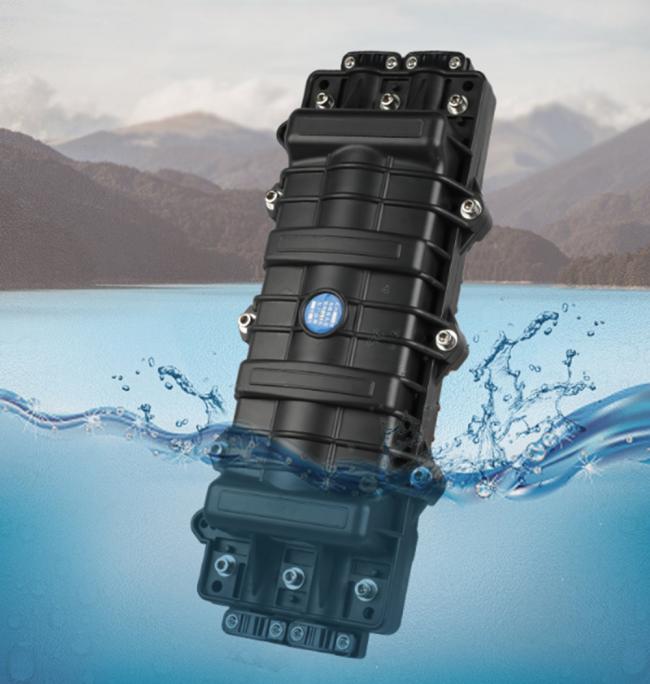

They are commonly made of high tensile construction plastic, so they have good adaptability and compression re-sistance. At the same time, they have good waterproof and dustproof function. If attached to a pole or hung from wir-ing, these fiber splice closures need to be held firmly in place, to avoid damage from weather and wind. So This type of fiber splice closure is the most commonly used one in mounted aerials or buried underground.
Basic structure and configuration
1). Dimension and capacity
| Outside dimension (LxWxH) | 460×182×120 (mm) |
| Weight (excluding outside box) | 2300g-2500g |
| Number of inlet/outlet ports | 2 (pieces) on each side (total 4 pieces) |
| Diameter of fiber cable | Φ5—Φ20 (mm) |
| Capacity of FOSC |
Bunchy: 12—96(Cores) Ribbon: max. 288(Cores) |
2). Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | Housing | 1 set | Protecting fiber cable splices in whole |
Internal diameter: 460×182×60 (mm) |
| 2 |

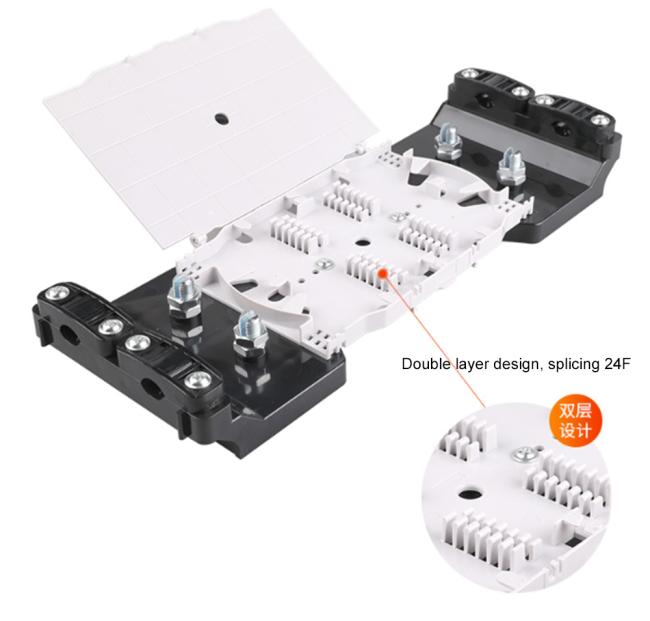

Fiber optic splice tray (FOST) |
max. 4 pcs (bunchy) max.4 pcs (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | |
| 4 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
| 5 | Port plug | 2 pieces | Sealing empty ports |
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs
FAQ:
1. Are you the real factory?
Yes, we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
